Lensagon TCHR-30-65

High Res Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 3x, WD 65mm, F# 18, NA 0.083, DOF 160um, Opt.Dist. 0.14

 Compare
SKU: 10519 Category:

Product Description

The Object Side Telecentric Lens TCHR-30-65 is suitable for sensors with an image format of 1/2 inch.

Magnification 3 x
Working Distance (WD) 65 mm
Depth of Field (DOF) 160 μm @ 40 μm
Resolution (Object Side) 4.04 μm
Image Format (max.) 1/2 inch
Working F-Number 18
Numerical Aperture (NA) 0.083
Field of View (FOV) 2.13mm x 1.6mm @ 2/3″
Telecentric Type Object Side
Telecentricity 0.015 °
Optical Distortion (max.) 0.14 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

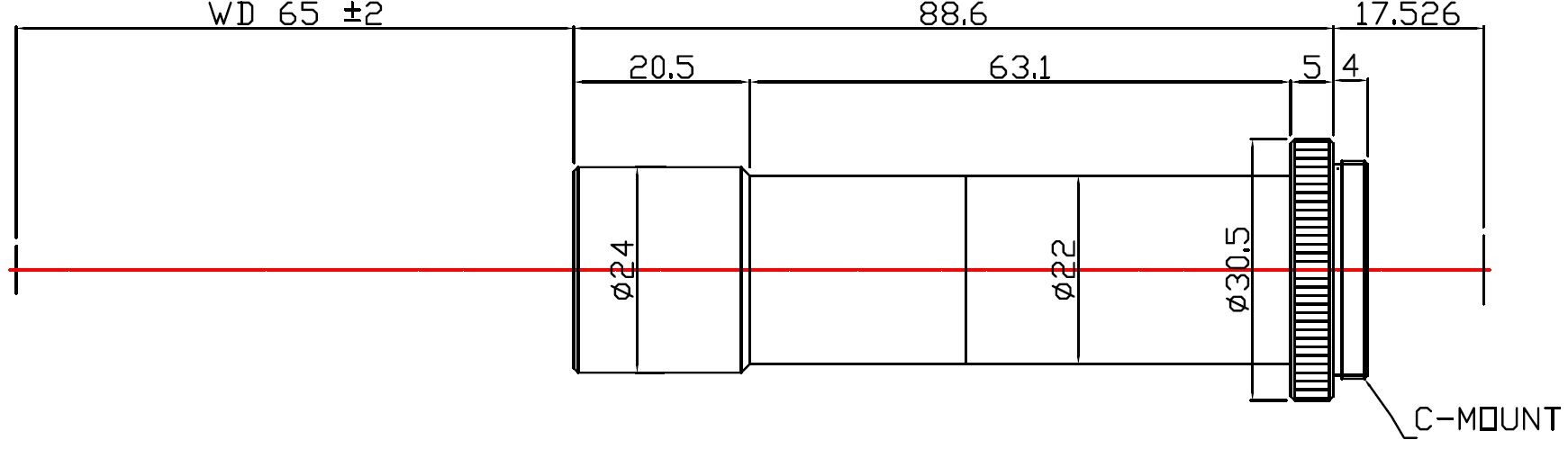

Drawing
