Lensagon TCHR-15-110

High Res Object Side Telecentric Lens for 2/3 inch sensor, Magnification: 1.5x, WD 110mm, F# 15.6, NA 0.048, DOF 555um, Opt.Dist. 0.15

 Compare
SKU: 10746 Category:

Product Description

The Object Side Telecentric Lens TCHR-15-110 is suitable for sensors with an image format of 2/3 inch.

Magnification 1.5
Mount C-Mount
Aperture 15.6
Working Distance (WD) 110 mm
Depth of Field (DOF) 555 μm
Resolution (Object Side) 7 μm
Numerical Aperture (NA) 0.048
Image Format (max.) 2/3 inch
Field of View (FOV) 5.86mm x 4.4mm@2/3″ CCD
Lens Type Object Side
Telecentricity 0.01
Optical Distortion (max.) 0.15 %
Special Feature High Res
pdf

Additional Information

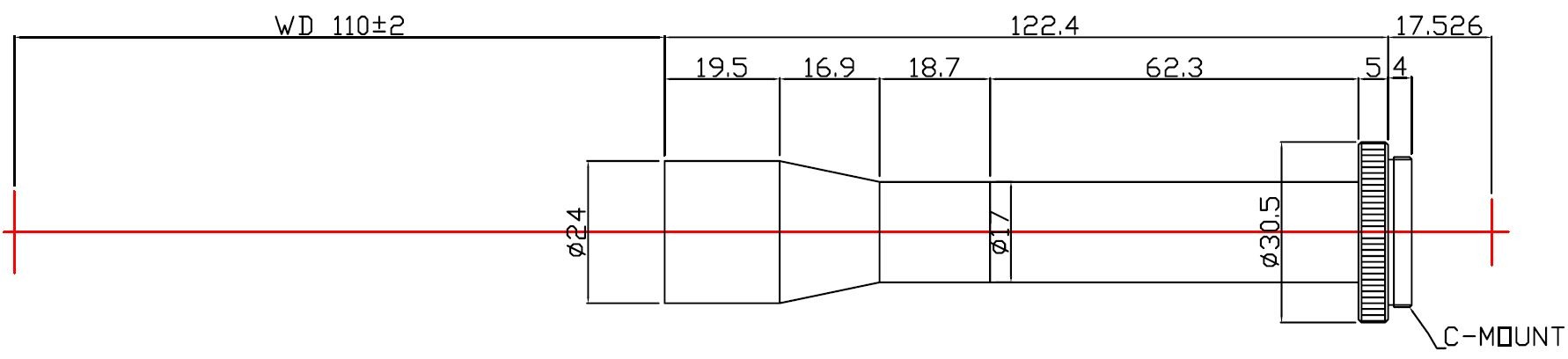

Technical Drawing:

Drawing
