Lensagon TCHR-05-65C

High Res Object Side Telecentric Lens for 2/3 inch sensor, Magnification: 0.5x, WD 65mm, F# 8.3, NA 0.03, DOF 2660um, Opt.Dist. 0.03, Coaxial Version

 Compare
SKU: 10034 Category:

Product Description

The Object Side Telecentric Lens TCHR-05-65C is suitable for sensors with an image format of 2/3 inch.

Magnification0.5
MountC-Mount
Aperture8.3
Working Distance (WD)65 mm
Depth of Field (DOF)2660 μm
Resolution (Object Side)11.2 μm
Numerical Aperture (NA)0.03
Image Format (max.)2/3 inch
Field of View (FOV)17.6mm x 12.8mm@2/3″ CCD
Lens TypeObject Side
Telecentricity0.04
Optical Distortion (max.)0.03 %
Special FeatureHigh Res
pdf

Additional Information

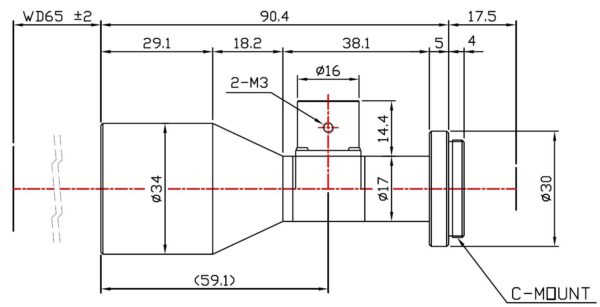

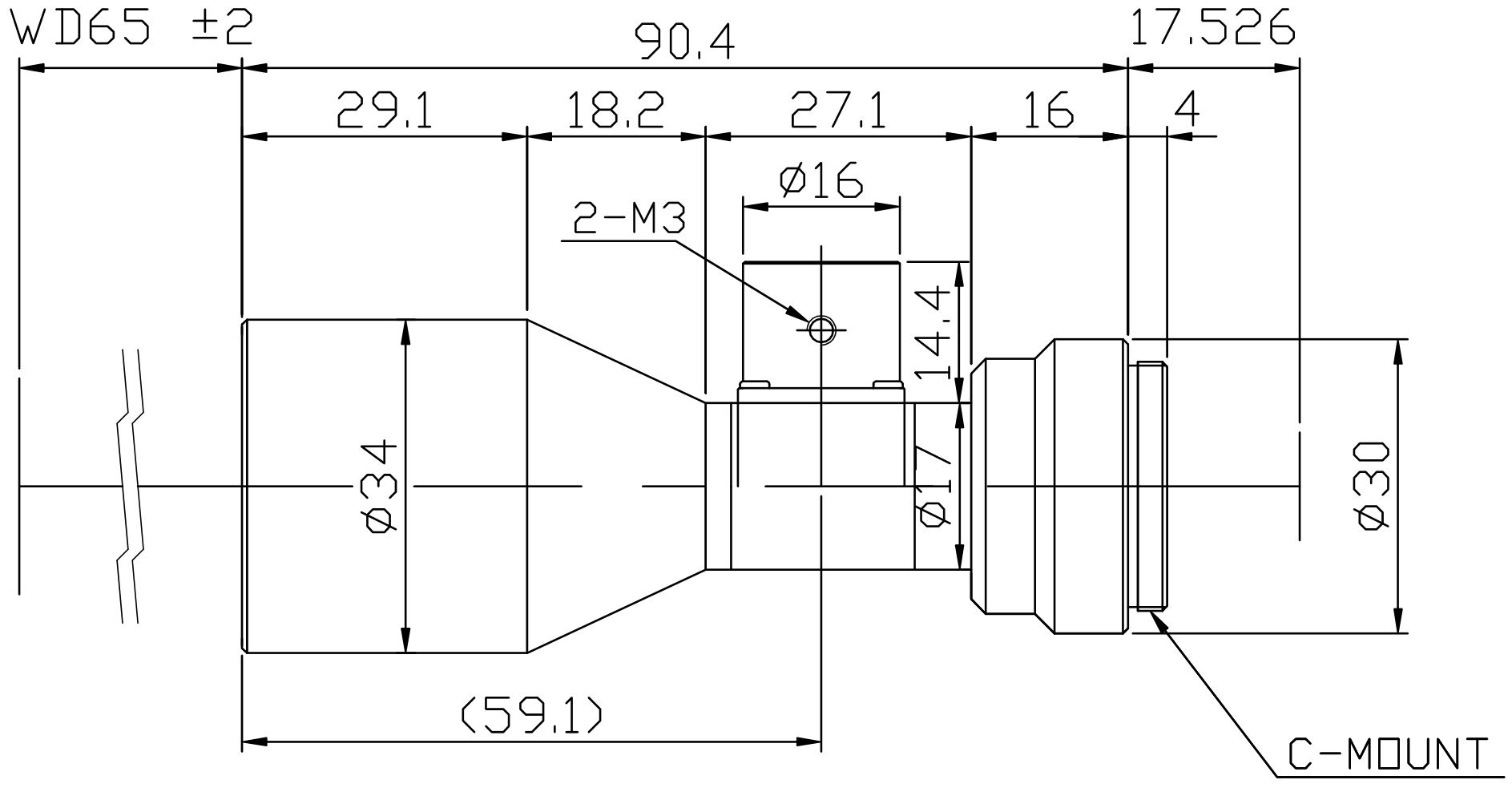

Technical Drawing:

Drawing
