Lensagon TC5M-40-65C

Super High Res Object Side Telecentric Lens for 2/3 inch sensor, Magnification: 4x, WD 65mm, F# 12.5, NA 0.16, DOF 31.3um, Opt.Dist. 0.03, Coaxial Version

 Compare
SKU: 01130 Category:

Product Description

The Object Side Telecentric Lens TC5M-40-65C is suitable for sensors up to 5 megapixel and with an image format of 2/3 inch.

Magnification4
MountC-Mount
Aperture12.5
Working Distance (WD)65 mm
Depth of Field (DOF)31.3 μm
Resolution (Object Side)2.09 μm
Numerical Aperture (NA)0.16
Image Format (max.)2/3 inch
Megapixel5
Field of View (FOV)2.1mm x 1.8mm
Lens TypeObject Side
Telecentricity0.02
Optical Distortion (max.)0.03 %
Special FeatureSuper High Res
pdf

Additional Information

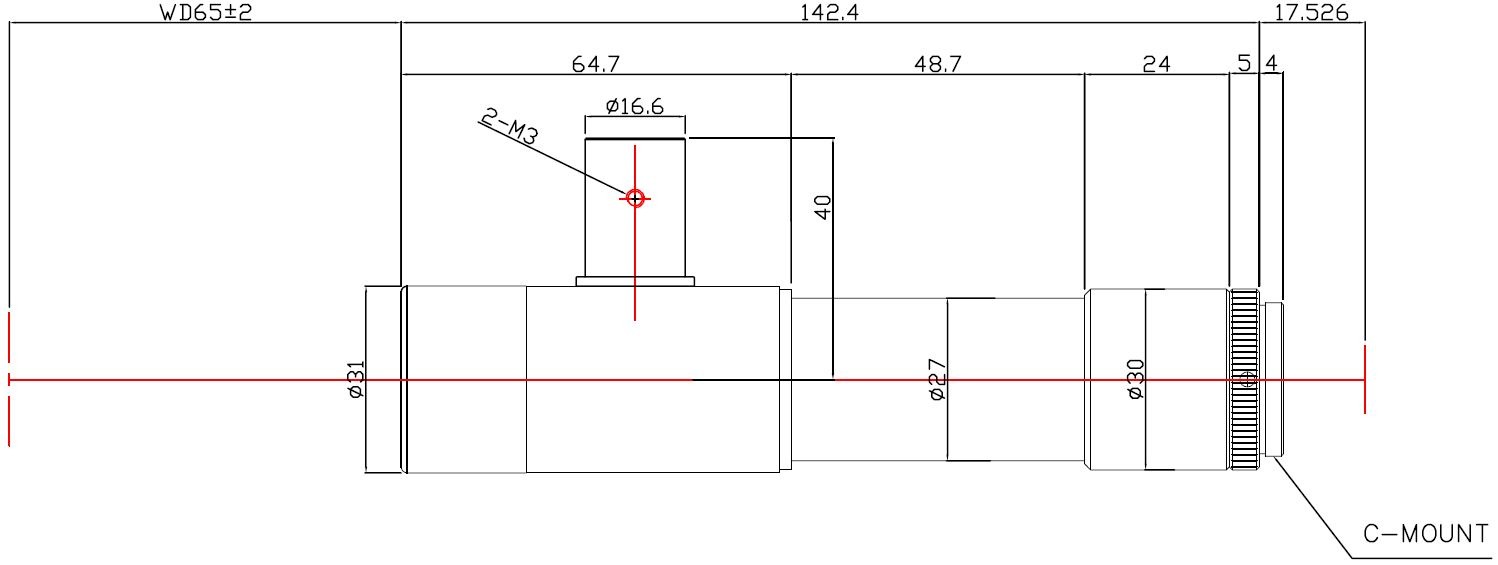

Technical Drawing:

Drawing
