Lensagon TC5M-20-110C

Lensagon TC5M-20-110C

High Res Object Side Telecentric Lens for 2/3 inch sensor, Magnification: 2x, WD 110mm, F# 11, NA 0.09, DOF 110um, Opt.Dist. 0.03, Coaxial Version

 Compare
SKU: 10498 Category:

Product Description

The Object Side Telecentric Lens TC5M-20-110C is suitable for sensors up to 5 megapixel and with an image format of 2/3 inch.

Magnification2
MountC-Mount
Aperture11
Working Distance (WD)110 mm
Depth of Field (DOF)110 μm
Resolution (Object Side)3.7 μm
Numerical Aperture (NA)0.09
Image Format (max.)2/3 inch
Megapixel5
Field of View (FOV)8.47mm x 7.1mm@5M CCD
Lens TypeObject Side
Telecentricity0.05
Optical Distortion (max.)0.03 %
Special FeatureHigh Res
pdf

Additional Information

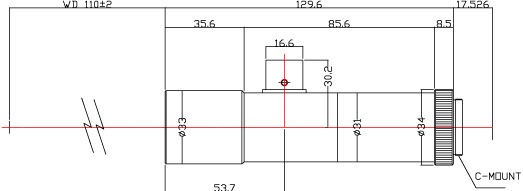

Technical Drawing:

Drawing
