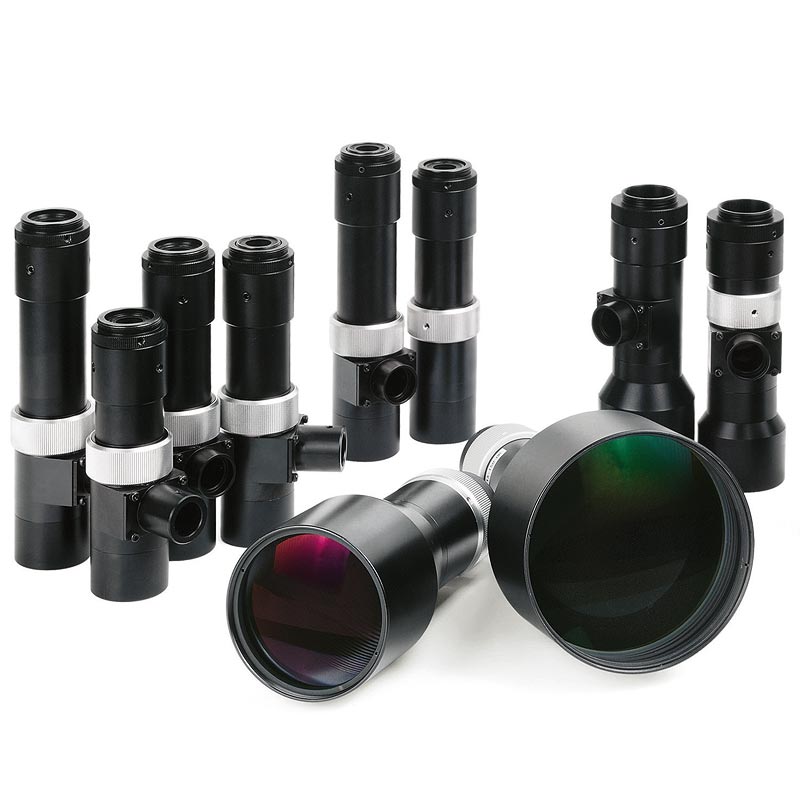

Lensagon TC5M-042-130I

High Res Object Side Telecentric Lens for 2/3 inch sensor, Magnification: 0.42x, WD 132mm, F# 3.35, NA 0.0462, DOF 836um, Opt.Dist. 0.03

 Compare
SKU: 10053 Category:

Product Description

The Object Side Telecentric Lens TC5M-042-130I is suitable for sensors up to 5 megapixel and with an image format of 2/3 inch.

Magnification 0.42 x
Working Distance (WD) 132.00 mm
Depth of Field (DOF) 836.00 μm @ 20.00 μm
Resolution (Object Side) 5.40 μm
Image Format (max.) 2/3 inch
Megapixel (max.) 5.00 MP
Working F-Number 3.35
Numerical Aperture (NA) 0.0462
Field of View (FOV) 20.1mm x 16.8mm @ 2/3
Telecentric Type Object Side
Telecentricity 0.04 °
Optical Distortion (max.) 0.03 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information


Drawing
