Lensagon TC5M-03-110

Lensagon TC5M-03-110

Super High Res Object Side Telecentric Lens for 2/3 inch sensor, Magnification: 0.3x, WD 110mm, F# 6.9, NA 0.0219, DOF 3040um, Opt.Dist. 0.02

 Compare
SKU: 01108 Category:

Product Description

The Object Side Telecentric Lens TC5M-03-110 is suitable for sensors up to 5 megapixel and with an image format of 2/3 inch.

Magnification 0.3 x
Mount C-Mount
Working F-Number 6.9
Working Distance (WD) 110 mm
Depth of Field (DOF) 3.04 mm
Resolution (Object Side) 15.3 μm
Numerical Aperture (NA) 0.0219
Image Format (max.) 2/3 inch
Megapixel (max.) 5 MP
Field of View (FOV) 28.2mm x 23.7mm
Telecentric Type Object Side
Telecentricity 0.04 °
Optical Distortion (max.) 0.02 %
Special Feature Super High Res
pdf

Additional Information

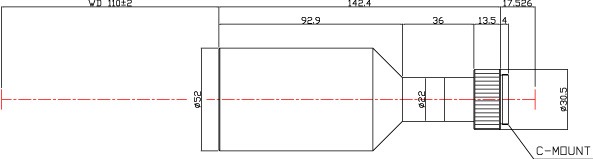

Technical Drawing:

Drawing
