Lensagon TC4MHR-026-200I

High Res Object Side Telecentric Lens for 1 inch sensor, Magnification: 0.26x, WD 200mm, F# 5.5, NA 0.0234, DOF 3600um, Opt.Dist. 0.03

 Compare
SKU: 10738 Category:

Product Description

The Object Side Telecentric Lens TC4MHR-026-200I is suitable for sensors up to 4 megapixel and with an image format of 1 inch.

Magnification 0.26 x
Working Distance (WD) 200 mm
Depth of Field (DOF) 3.6 mm @ 22 μm
Resolution (Object Side) 14.3 μm
Image Format (max.) 1 inch
Megapixel (max.) 4 MP
Working F-Number 5.5
Numerical Aperture (NA) 0.0234
Field of View (FOV) 43.3mm x 43.3mm
Telecentric Type Object Side
Telecentricity 0.03 °
Optical Distortion (max.) 0.03 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

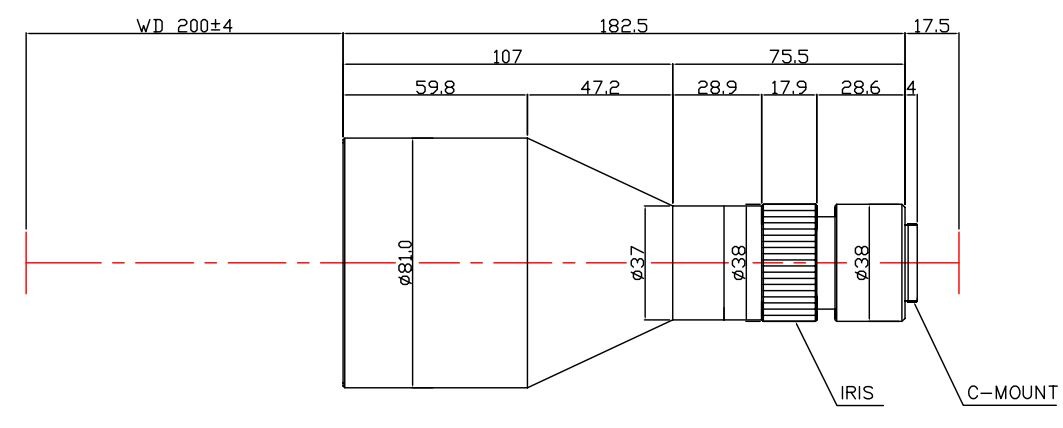

Drawing
