Lensagon TC4MHR-0215-163I

High Res Object Side Telecentric Lens for 1 inch sensor, Magnification: 0.215x, WD 163mm, F# 5.6, NA 0.019, DOF 5300um, Opt.Dist. 0.03

 Compare
SKU: 10672 Category:

Product Description

The Object Side Telecentric Lens TC4MHR-0215-163I is suitable for sensors up to 4 megapixel and with an image format of 1 inch.

Magnification 0.215 x
Mount C-Mount
Working F-Number 5.6
Working Distance (WD) 163 mm
Depth of Field (DOF) 5.3 mm
Resolution (Object Side) 17.65 μm
Numerical Aperture (NA) 0.019
Image Format (max.) 1 inch
Megapixel (max.) 4 MP
Field of View (FOV) 52.37mm x 52.37mm@1″ CCD
Telecentric Type Object Side
Telecentricity 0.03 °
Optical Distortion (max.) 0.03 %
Special Feature High Res
pdf

Additional Information

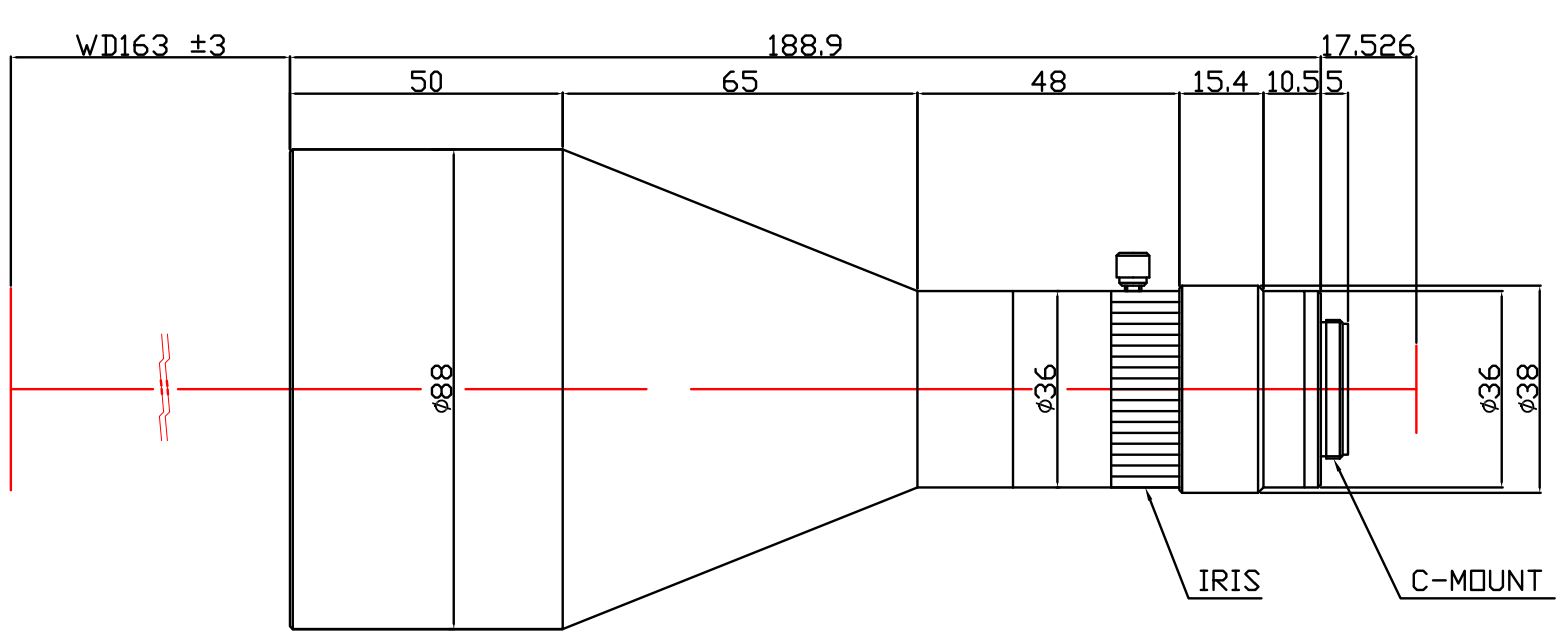

Technical Drawing:

Drawing
