Lensagon T25M-045-270I

Lensagon T25M-045-270I

Standard Object Side Telecentric Lens for 32mm (diagonal) sensor, Magnification: 0.45x, WD 270mm, F# 6.25, NA 0.036, DOF 1100um, Opt.Dist. 0.08

 Compare
SKU: 10715 Category:

Product Description

The Object Side Telecentric Lens T25M-045-270I is suitable for sensors up to 25 megapixel and with an image format of 32mm (diagonal).

Magnification 0.45 x
Working Distance (WD) 270 mm
Depth of Field (DOF) 1.1 mm
Resolution (Object Side) 9.31 μm
Image Format (max.) 32mm (diagonal)
Megapixel (max.) 25 MP
Working F-Number 6.25
Numerical Aperture (NA) 0.036
Field of View (FOV) 51.5 x 51.5 mm @ 25M
Telecentric Type Object Side
Telecentricity 0.03 °
Optical Distortion (max.) 0.08 %
Mount F-Mount *
Special Feature Standard

* Other mounts are available on request.

pdf

Additional Information

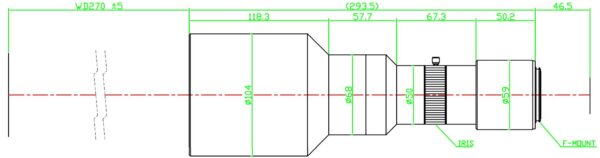

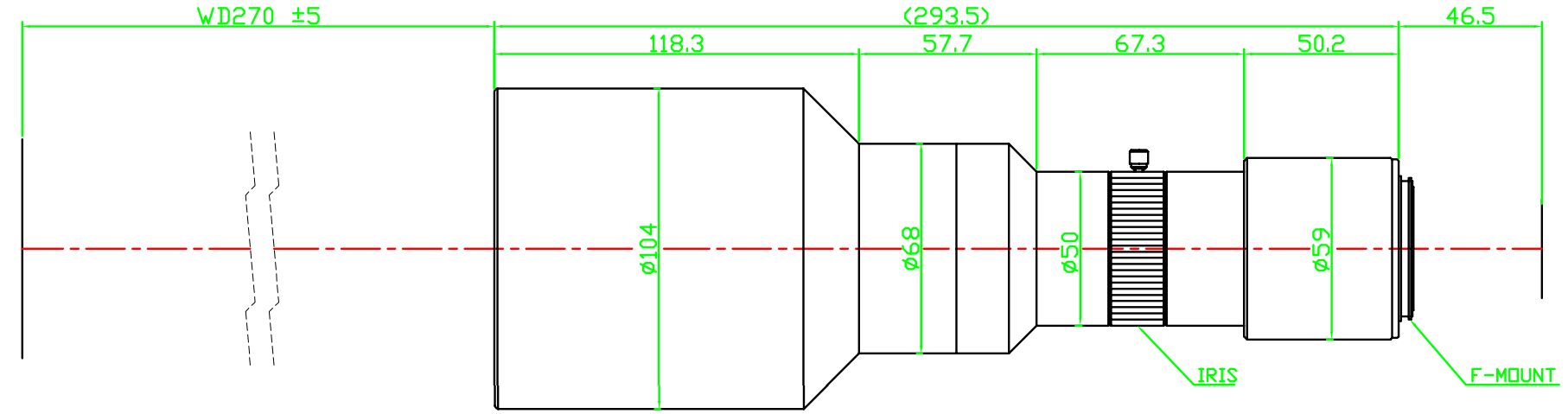

Drawing
