Lensagon T25M-044-152IC

Super High Res Object Side Telecentric Lens for 32mm (diagonal) sensor, Magnification: 0.44x, WD 152mm, F# 8, NA 0.028, DOF 1487um, Opt.Dist. 0.04, Coaxial Version

 Compare
SKU: 11320 Category:

Product Description

The Object Side Telecentric Lens T25M-044-152IC is suitable for sensors up to 25 megapixel and with an image format of 32mm (diagonal).

Magnification0.44 x
Working Distance (WD)152 mm
Depth of Field (DOF)1.487 mm @ 10.4 μm
Resolution (Object Side)11.9 μm
Image Format (max.)32mm (diagonal)
Megapixel (max.)25 MP
Working F-Number8
Numerical Aperture (NA)0.028
Field of View (FOV)52.27mm x 52.27mm
Telecentric TypeObject Side
Telecentricity0.04 °
Optical Distortion (max.)0.04 %
MountF-Mount *

* Other mounts are available on request.

pdf

Additional Information

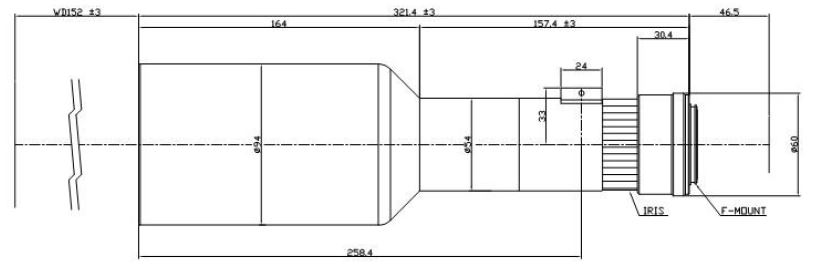

Drawing
