Theia ML410M

Theia ML410M

12 Megapixel C-Mount lens for 1/1.7 inch sensors, F1.6, f=4mm

 Compare
SKU: 11230 Category:

Product Description

The C-Mount lens Theia ML410M is suitable for current sensors up to 12 megapixel with an image format of 1/1.7 inch. It is characterized by a particularly high light intensity.

MountC-Mount
Sensor1/1.7 inch
Focal Length4 mm
max. Focal Length10
Aperture (f#)1.6
MOD0.1 m
Angle of View (D)111°
Megapixel12 MP
IR CorrectionYes
Image Circle11 mm
Weight70 g
Focusmanual-lock
TypStandard
pdf

Additional Information

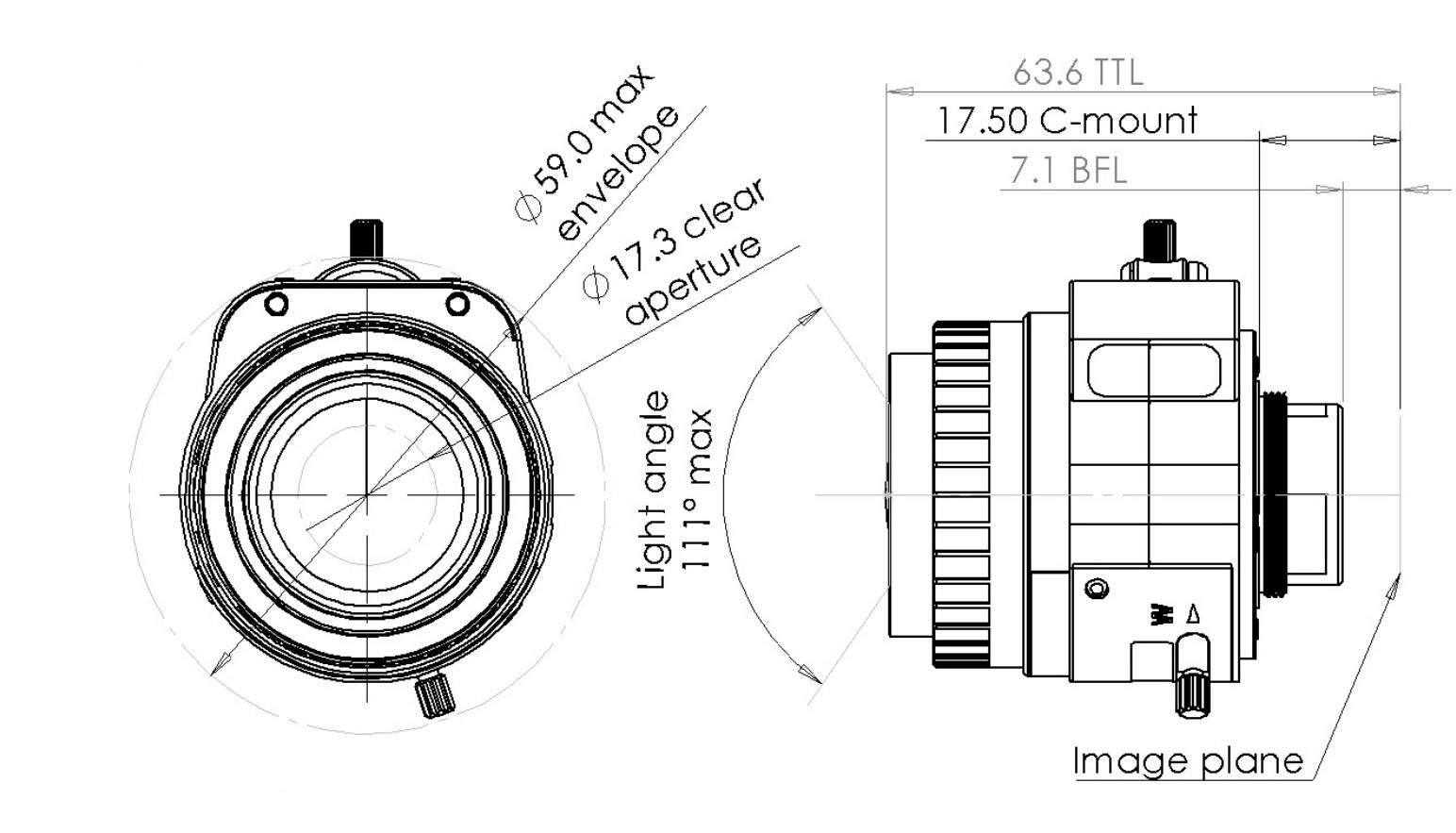

Technical Drawing:

Drawing
