Theia ML183M

5 Megapixel C-Mount lens for 1/2.5 inch sensors, F1.8, f=1.8mm

 Compare
SKU: 10147 Category:

Product Description

The C-Mount lens Theia ML183M is suitable for common sensors up to 5 megapixel with an image format of 1/2.5 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 1/2.5 inch
Focal Length 1.8 mm
max. Focal Length 3
Aperture (f#) 1.8
MOD 0.5 m
Back Focal Length 8.2
Angle of View (D) 126° / H: 115° / V: 99°
Megapixel (max.) 5 MP
IR Correction Yes
IR Cut Filter No
Weight 59 g
Iris manual-lock
Focus manual-lock
Typ Standard
pdf

Additional Information

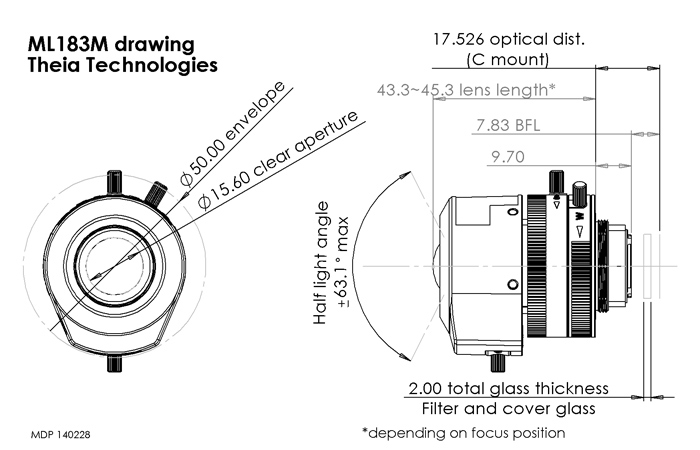

Drawing
