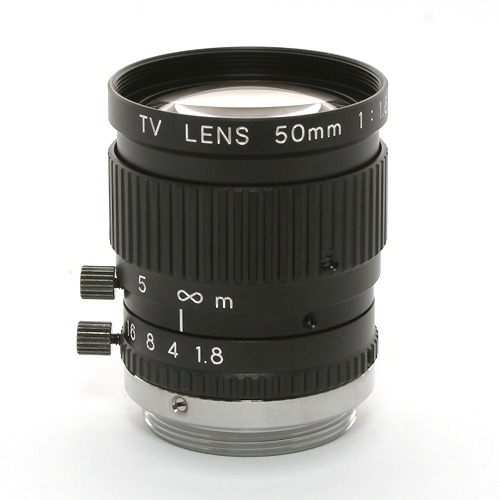

Lensagon CY5018

0.4 Megapixel C-Mount lens for 2/3 inch sensors, F1.8, f=50mm

 Compare
SKU: 00183 Category:

Product Description

The C-Mount lens Lensagon CY5018 is suitable for sensors below 1 megapixel with an image format of 2/3 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 2/3 inch
Focal Length 50.00 mm
Aperture (f#) 1.80
MOD 1.00 m
Back Focal Length 13.94
Angle of View (D) 12.55° / H: 10.50° / V: 7.90°
Megapixel (max.) 0.40 MP
IR Cut Filter No
TV Distortion 0.10
Image Circle 11.00 mm
Weight 54.50 g
Iris manual-lock
Focus manual-lock
Filter M30.5 P=0.50
Typ Standard
pdf

Additional Information


Drawing
