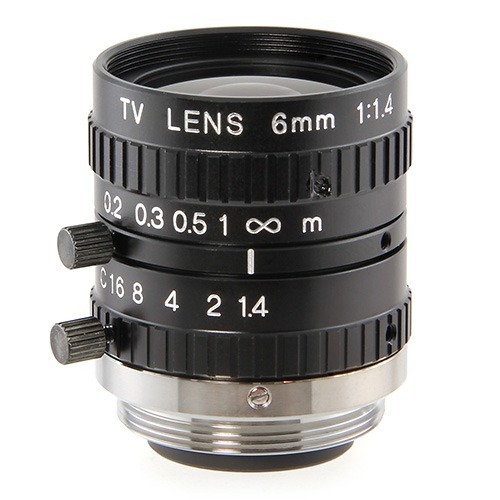

Lensagon CY0614

Lensagon CY0614

0.4 Megapixel C-Mount lens for 1/2 inch sensors, F1.4, f=6mm

 Compare
SKU: 00175 Category:

Product Description

The C-Mount lens Lensagon CY0614 is suitable for sensors below 1 megapixel with an image format of 1/2 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 1/2 inch
Focal Length 6 mm
Aperture (f#) 1.4
MOD 0.2 m
Back Focal Length 11.28
Angle of View (D) 67.38°
Megapixel 0.4 MP
IR Cut Filter No
TV Distortion -1.2
Image Circle 8 mm
Weight 60 g
Iris manual-lock
Focus manual-lock
Filter Size M27 P0.5
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
