Lensagon CM7518GS

1 Megapixel C-Mount lens for 1 inch sensors, F1.8, f=75mm

 Compare
SKU: 00207 Category:

Product Description

The C-Mount lens Lensagon CM7518GS is suitable for common sensors up to 1 megapixel with an image format of 1 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 1 inch
Focal Length 75 mm
Aperture (f#) 1.8
MOD 1 m
Back Focal Length 14.5
Megapixel 1 MP
IR Cut Filter No
Optical Distortion -0.2 %
Weight 195 g
Iris manual-lock
Focus manual-lock
Filter Size M46mm P=0.75
Typ Standard
pdf

Additional Information

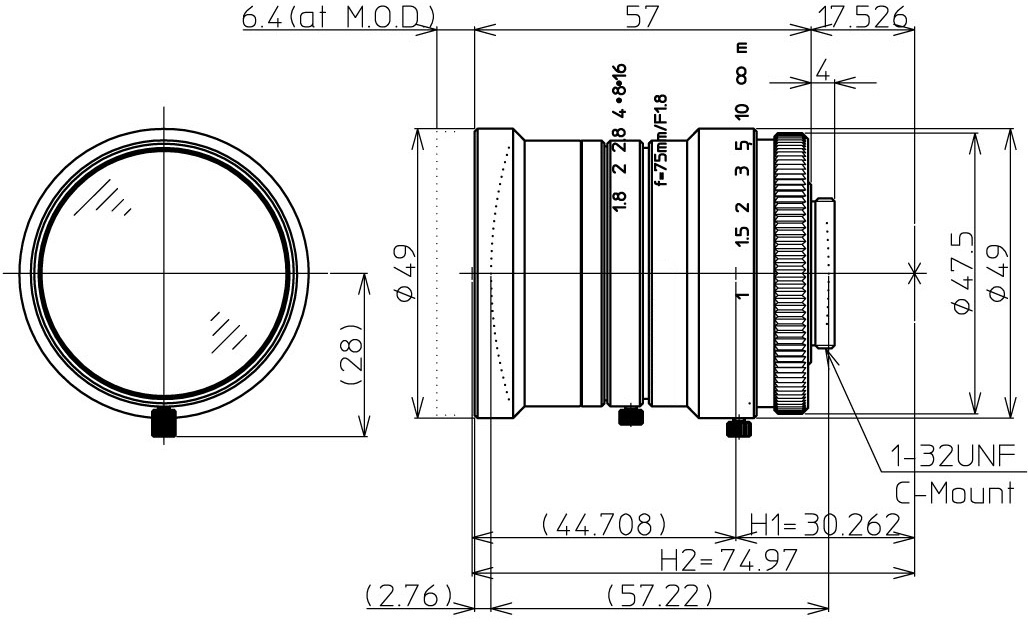

Technical Drawing:

Drawing
