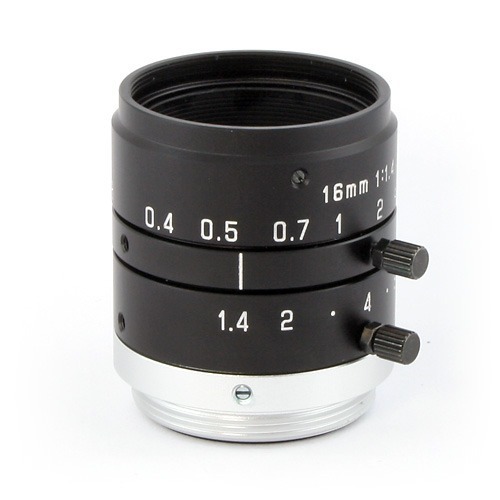

Lensagon CM1614MJ

Lensagon CM1614MJ

1 Megapixel C-Mount lens for 2/3 inch sensors, F1.4, f=16mm

 Compare
SKU: 00169 Category:

Product Description

The C-Mount lens Lensagon CM1614MJ is suitable for common sensors up to 1 megapixel with an image format of 2/3 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 2/3 inch
Focal Length 16 mm
Aperture (f#) 1.4
MOD 0.25 m
Back Focal Length 12.78
Angle of View (D) 37.9°
Megapixel 1 MP
IR Cut Filter No
Optical Distortion -0.28 %
Weight 42 g
Iris manual-lock
Focus manual-lock
Filter Size M25.5
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
