Lensagon CK8M1628S23

8 Megapixel C-Mount lens for 2/3 inch sensors, F2.8, f=16mm

 Compare
SKU: 11345 Category:

Product Description

The C-Mount lens Lensagon CK8M1628S23 is suitable for current sensors up to 8 megapixel with an image format of 2/3 inch.

Mount C-Mount
Sensor 2/3 inch
Focal Length 16 mm
Aperture (f#) 2.8
MOD 0.1 m
Angle of View (D) 37.13° / H: 28.94° / V: 24.38°
Megapixel (max.) 8 MP
Optical Distortion -0.2 %
Weight 57.1 g
Iris manual-lock
Focus manual-lock
Typ Standard
pdf

Additional Information

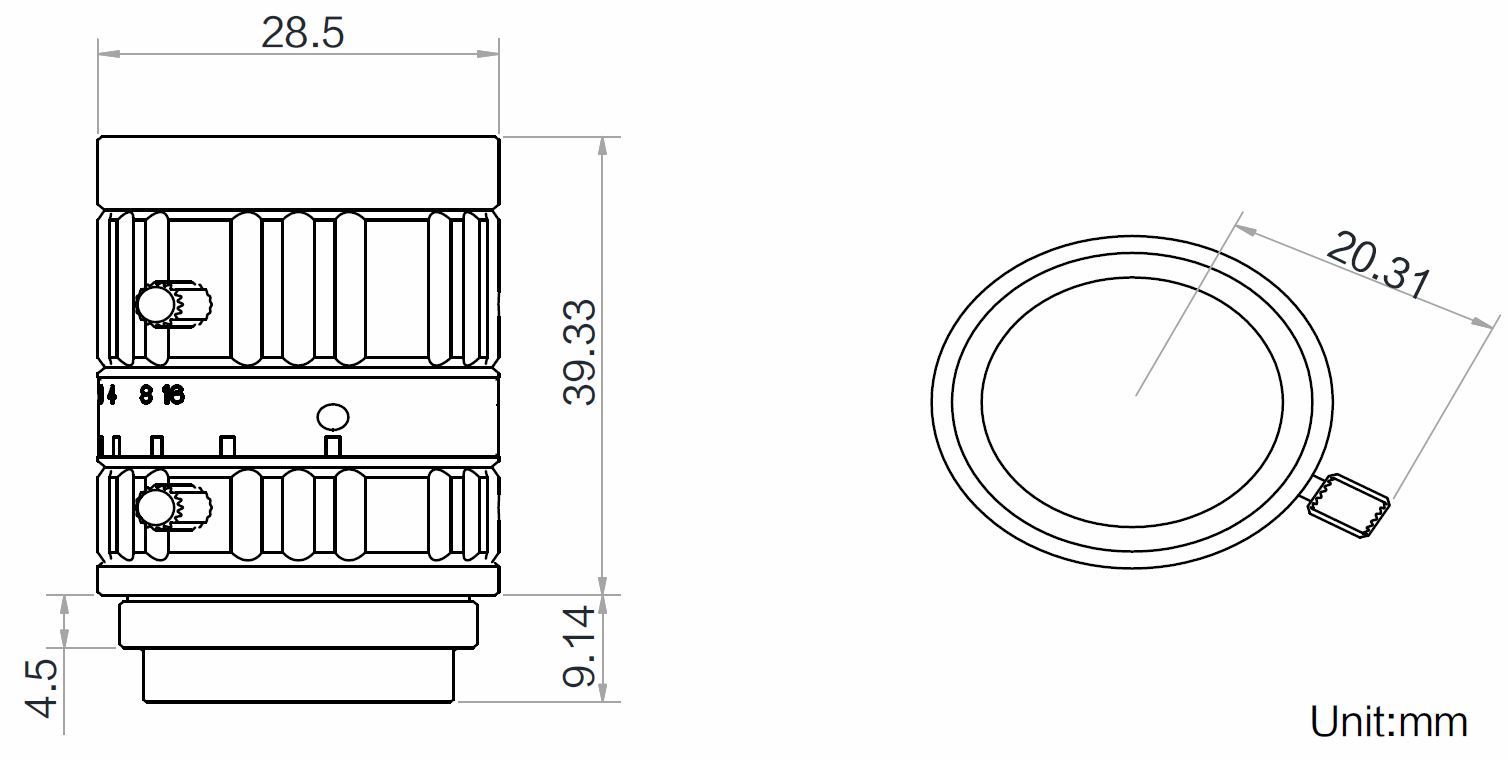

Drawing
