Lensagon CK6M2528S118V2

6 Megapixel C-Mount lens for 1/1.8 inch sensors, F2.8, f=25mm

 Compare
SKU: 11523 Category:

Product Description

The C-Mount lens Lensagon CK6M2528S118V2 is suitable for current sensors up to 6 megapixel with an image format of 1/1.8 inch.

MountC-Mount
Sensor1/1.8 inch
Focal Length25 mm
Aperture (f#)2.8
MOD0.2 m
Angle of View (D)20.32° / H: 16.77° / V: 11.24°
Megapixel (max.)6 MP
IR Cut FilterNo
TV Distortion-0.028
Image Circle9 mm
Weight48.1 g
Irismanual-lock
Focusmanual-lock
FilterM27xP0.5
pdf

Additional Information

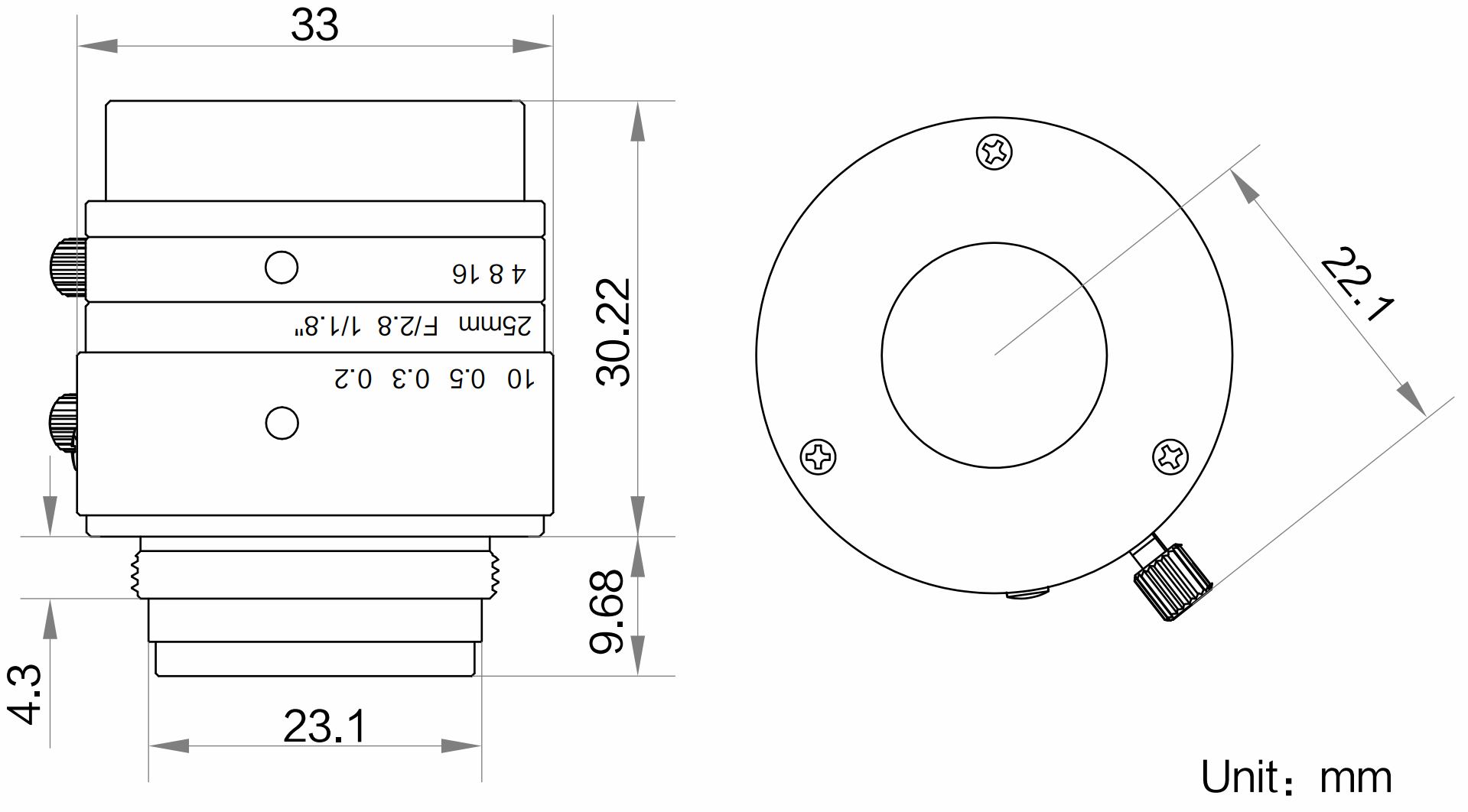

Drawing
