CK6M1228S118

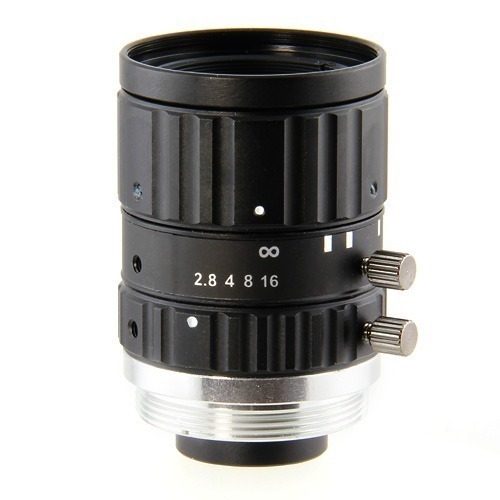

Lensagon CK6M1228S118

6 Megapixel C-Mount lens for 1/1.8 inch sensors, F2.8, f=12mm

 Compare
SKU: 10620 Category:

Product Description

The C-Mount lens Lensagon CK6M1228S118 is suitable for current sensors up to 6 megapixel with an image format of 1/1.8 inch.

Mount C-Mount
Sensor 1/1.8 inch
Focal Length 12 mm
Aperture (f#) 2.8
MOD 0.1 m
Angle of View (D) 41.2°
Angle of View (H) 34.4°
Angle of View (V) 23.4°
Megapixel 6 MP
IR Cut Filter No
TV Distortion -0.12
Weight 85 g
Iris manual-lock
Focus manual-lock
Filter Size M27 P=0.5
pdf

Additional Information

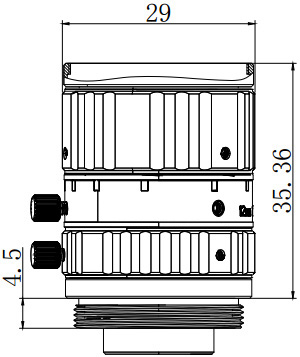

Technical Drawing:

Drawing
