CK10M3520S43

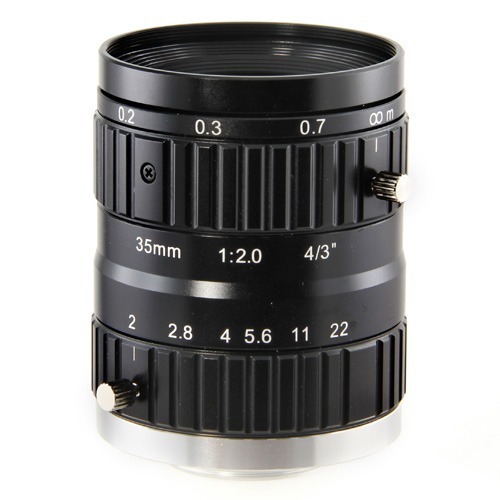

Lensagon CK10M3520S43

10 Megapixel C-Mount lens for 4/3 inch sensors, F2, f=35mm

 Compare
SKU: 10618 Category:

Product Description

The C-Mount lens Lensagon CK10M3520S43 is suitable for current sensors up to 10 megapixel with an image format of 4/3 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 4/3 inch
Focal Length 35 mm
Aperture (f#) 2
MOD 0.2 m
Angle of View (D) 36.6°
Angle of View (H) 29.6°
Angle of View (V) 22.4°
Megapixel 10 MP
IR Cut Filter No
TV Distortion -0.56
Weight 205 g
Iris manual-lock
Focus manual-lock
Filter Size M40.5 P=0.5
pdf

Additional Information

Technical Drawing:

Drawing
