CK10M2520S43

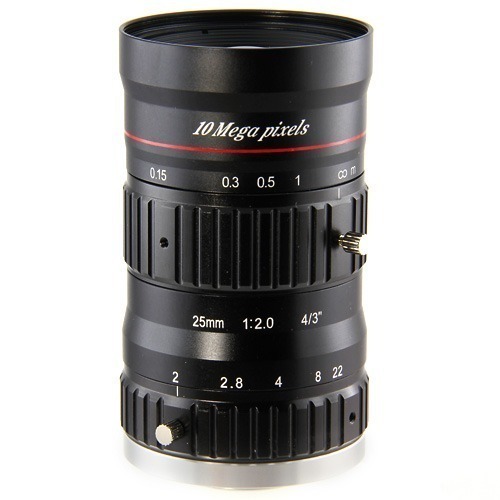

Lensagon CK10M2520S43

10 Megapixel C-Mount lens for 4/3 inch sensors, F2, f=25mm

 Compare
SKU: 00593 Category:

Product Description

The C-Mount lens Lensagon CK10M2520S43 is suitable for current sensors up to 10 megapixel with an image format of 4/3 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 4/3 inch
Focal Length 25 mm
Aperture (f#) 2
MOD 0.15 m
Angle of View (D) 49.7°
Angle of View (H) 40.6°
Angle of View (V) 31°
Megapixel 10 MP
IR Cut Filter No
TV Distortion -0.66
Weight 285 g
Iris manual-lock
Focus manual-lock
Filter Size M46 P=0.75
pdf

Additional Information

Technical Drawing:

Drawing
