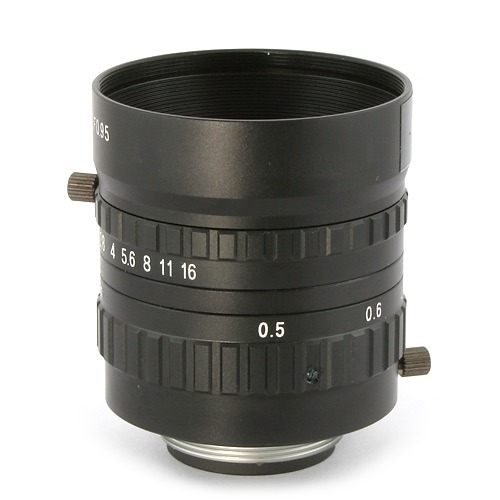

Lensagon CHS25095

Lensagon CHS25095

1 Megapixel C-Mount lens for 1 inch sensors, F0.95, f=25mm

 Compare
SKU: 00209 Category:

Product Description

The C-Mount lens Lensagon CHS25095 is suitable for common sensors up to 1 megapixel with an image format of 1 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 1 inch
Focal Length 25 mm
Aperture (f#) 0.95
Back Focal Length 13.89
Angle of View (D) 35.5°
Megapixel 1 MP
IR Cut Filter No
Weight 165 g
Iris manual
Focus manual
Filter Size M40.5 P=0.5
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
