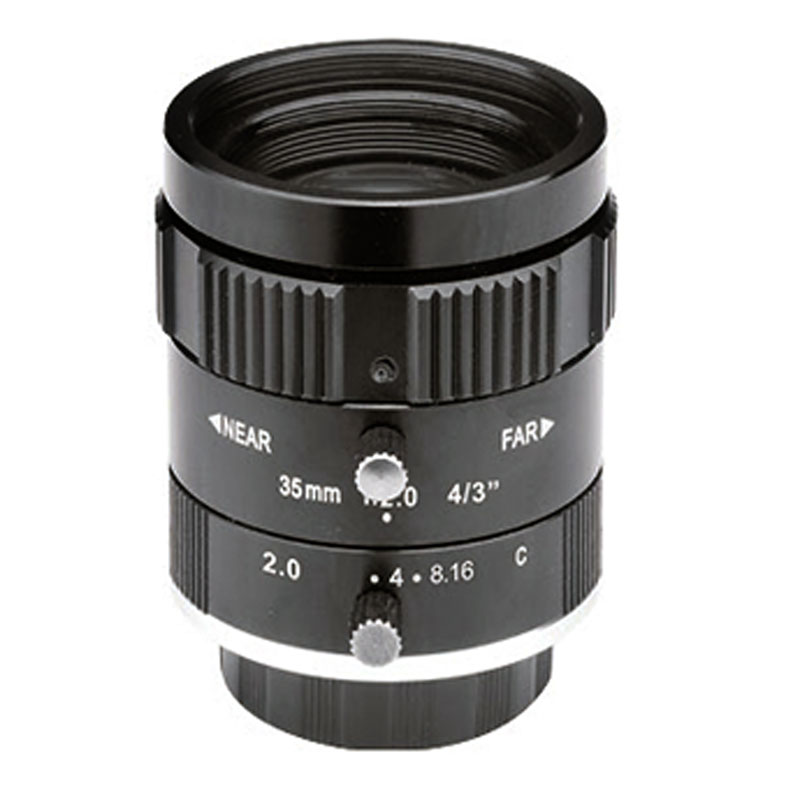

Lensagon C8M3520S43

Lensagon C8M3520S43

8 Megapixel C-Mount lens for 4/3 inch sensors, F2, f=35mm

 Compare
SKU: 10255 Category:

Product Description

The C-Mount lens Lensagon C8M3520S43 is suitable for current sensors up to 8 megapixel with an image format of 4/3 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 4/3 inch
Focal Length 35 mm
Aperture (f#) 2
MOD 0.4 m
Back Focal Length 20.1
Angle of View (D) 35°
Megapixel 8 MP
IR Cut Filter No
Optical Distortion 1 %
Weight 168 g
Iris manual
Focus manual
pdf

Additional Information

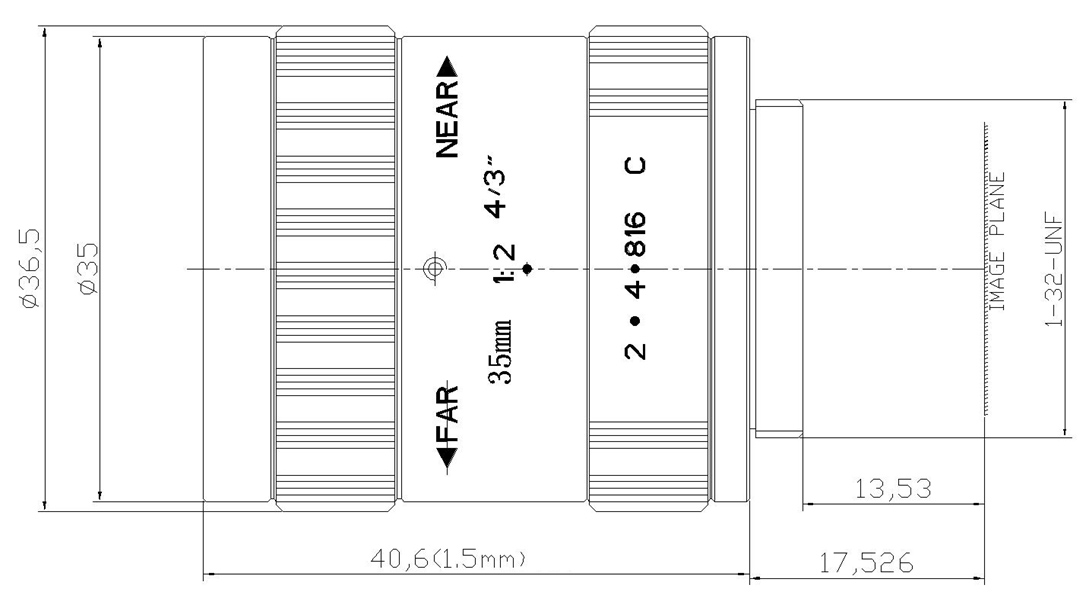

Technical Drawing:

Drawing
