C5M0818V2

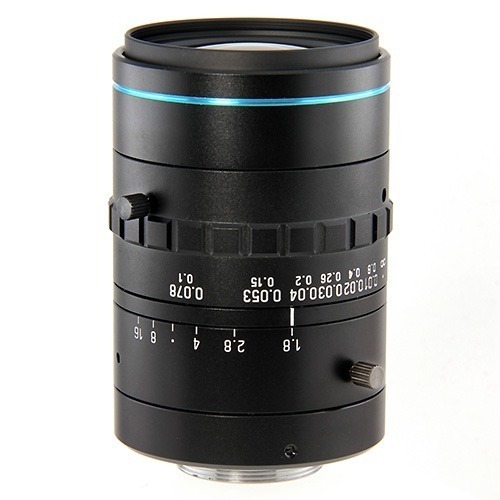

Lensagon C5M0818V2

5 Megapixel C-Mount lens for 2/3 inch sensors, F1.8, f=8mm

 Compare
SKU: 10860 Category:

Product Description

The C-Mount lens Lensagon C5M0818V2 is suitable for common sensors up to 5 megapixel with an image format of 2/3 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 2/3 inch
Focal Length 8 mm
Aperture (f#) 1.8
MOD 0.1 m
Back Focal Length 17.526
Angle of View (D) 69.02°
Angle of View (H) 57.5°
Angle of View (V) 44.5°
Megapixel 5 MP
IR Cut Filter No
TV Distortion 0.31
Image Circle 11 mm
Weight 239 g
Iris manual-lock
Focus manual-lock
Filter Size M40.5 P=0.75
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
