Lensagon C12M5014S43ND

12 Megapixel C-Mount lens for 4/3 inch sensors, F1.4, f=50mm

 Compare
SKU: 11339 Category:

Product Description

The C-Mount lens Lensagon C12M5014S43ND is suitable for current sensors up to 12 megapixel with an image format of 4/3 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 4/3 inch
Focal Length 50 mm
Aperture (f#) 1.4
MOD 0.2 m
Back Focal Length 17.53
Angle of View (D) 25.9° / H: 20.9° / V: 15.7°
Megapixel (max.) 12 MP
IR Correction No
IR Cut Filter No
TV Distortion 0.1
Image Circle 21.3 mm
Weight 208 g
Iris manual
Focus manual
Typ Standard
pdf

Additional Information

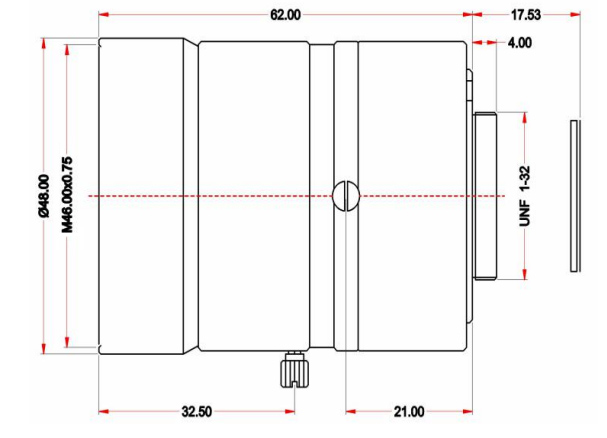

Drawing
