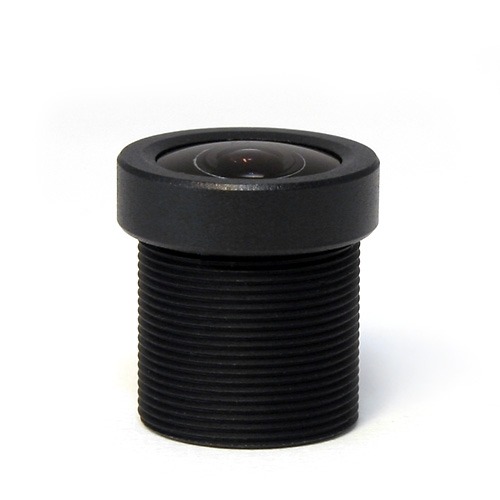

Lensagon BT2920C

Lensagon BT2920C

Megapixel S-Mount lens for 1/3 inch sensors, F2, f=2.9mm

 Compare
SKU: 00815 Category:

Product Description

The S-Mount lens Lensagon BT2920C is suitable for sensors below 1 megapixel with an image format of 1/3 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/3 inch
Focal Length 2.9 mm
Aperture (f#) 2
MOD 0.2 m
Back Focal Length 5.02
Angle of View (D) 138°
IR Cut Filter Yes
Optical Distortion -29 %
Image Circle 6.4 mm
Weight 7 g
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
