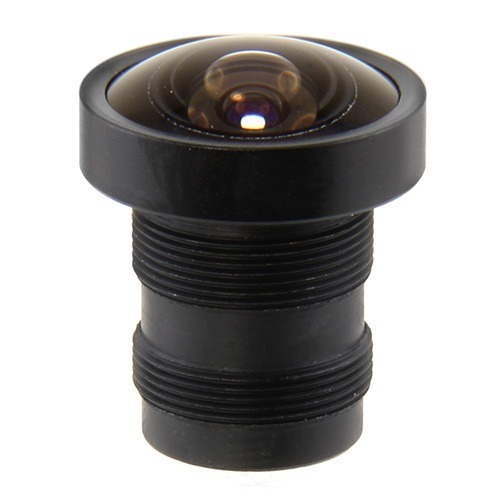

Lensagon BT2120C

Lensagon BT2120C

Megapixel S-Mount lens for 1/3 inch sensors, F2, f=2.1mm

 Compare
SKU: 00324 Category:

Product Description

The S-Mount lens Lensagon BT2120C is suitable for sensors below 1 megapixel with an image format of 1/3 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/3 inch
Focal Length 2.1 mm
Aperture (f#) 2
MOD 0.2 m
Back Focal Length 5.13
Angle of View (D) 151°
IR Cut Filter Yes
Optical Distortion -60 %
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
