Lensagon BM6020S12

Lensagon BM6020S12

1.3 Megapixel S-Mount lens for 1/2 inch sensors, F2, f=6mm

 Compare
SKU: 00347 Category:

Product Description

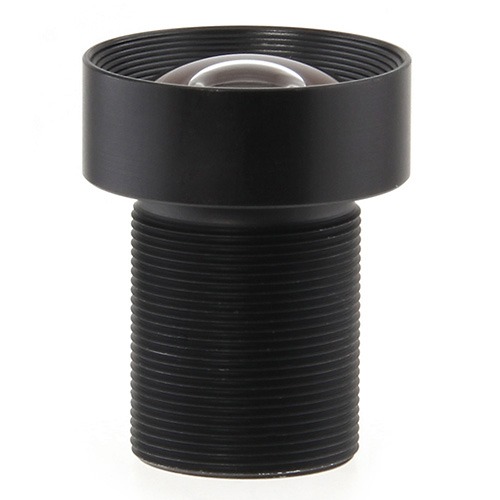

The S-Mount lens Lensagon BM6020S12 is suitable for common sensors up to 1.3 megapixel with an image format of 1/2 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/2 inch
Focal Length 6 mm
Aperture (f#) 2
Back Focal Length 10.7
Angle of View (D) 85°
Megapixel 1.3 MP
IR Cut Filter No
Weight 7.1 g
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
