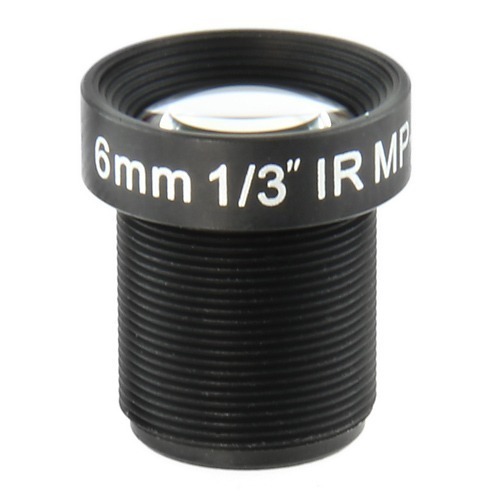

Lensagon BM6020NDC

Lensagon BM6020NDC

1 Megapixel S-Mount lens for 1/3 inch sensors, F2, f=6mm

 Compare
SKU: 10811 Category:

Product Description

The S-Mount lens Lensagon BM6020NDC is suitable for common sensors up to 1 megapixel with an image format of 1/3 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/3 inch
Focal Length 6 mm
Aperture (f#) 2
MOD 0.2 m
Back Focal Length 6.37
Angle of View (D) 57°
Megapixel (max.) 1 MP
IR Cut Filter Yes
Optical Distortion -2.6 %
Iris fixed
Focus fixed
Chief ray angle 8 °
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
