Lensagon BM4018S118

3 Megapixel S-Mount lens for 1/1.8 inch sensors, F1.8, f=4mm

 Compare
SKU: 00608 Category:

Product Description

The S-Mount lens Lensagon BM4018S118 is suitable for common sensors up to 3 megapixel with an image format of 1/1.8 inch. It is characterized by a particularly high light intensity.

MountS-Mount
Sensor1/1.8 inch
Focal Length4 mm
Aperture (f#)1.8
MOD0.2 m
Back Focal Length8
Angle of View (D)126°
Megapixel3 MP
IR CorrectionYes
Optical Distortion-45 %
Weight19 g
Irisfixed
Focusfixed
TypStandard
pdf

Additional Information

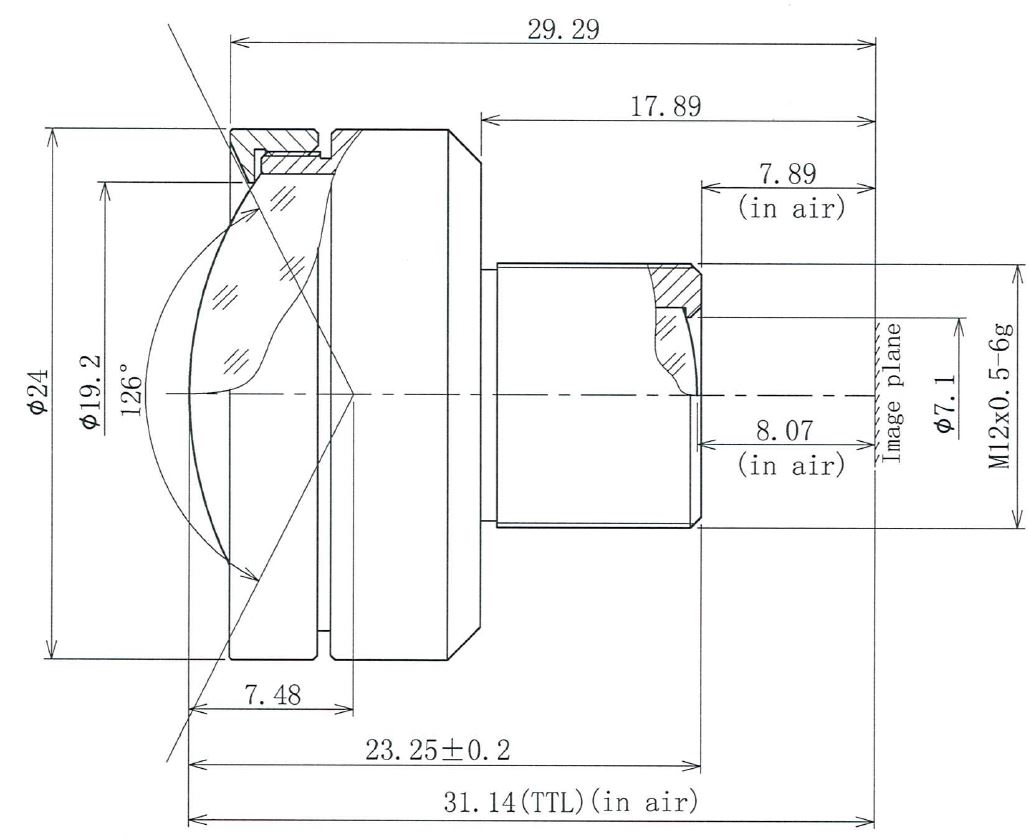

Technical Drawing:

Drawing

Technical Drawing:

Drawing
