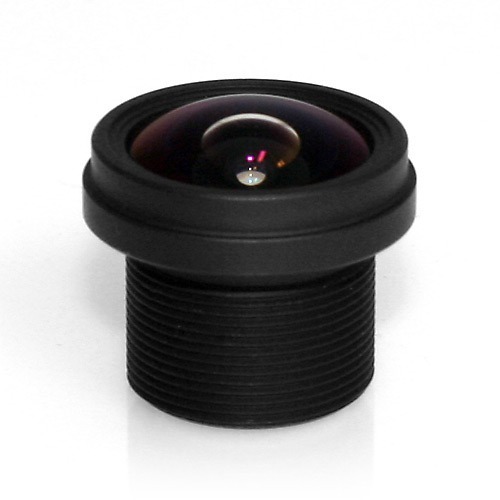

Lensagon BM2420C

Lensagon BM2420C

Megapixel S-Mount lens for 1/3 inch sensors, F2, f=2.4mm

 Compare
SKU: 00821 Category:

Product Description

The S-Mount lens Lensagon BM2420C is suitable for sensors below 1 megapixel with an image format of 1/3 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/3 inch
Focal Length 2.4 mm
Aperture (f#) 2
MOD 0.15 m
Back Focal Length 4.56
Angle of View (D) 132°
IR Cut Filter Yes
Weight 6 g
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
