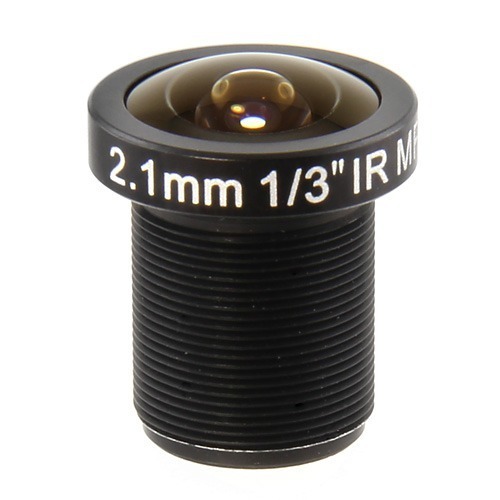

Lensagon BM2118V2C

Lensagon BM2118V2C

1 Megapixel S-Mount lens for 1/3 inch sensors, F2.2, f=2.1mm

 Compare
SKU: 00880 Category:

Product Description

The S-Mount lens Lensagon BM2118V2C is suitable for common sensors up to 1 megapixel with an image format of 1/3 inch.

Mount S-Mount
Sensor 1/3 inch
Focal Length 2.1 mm
Aperture (f#) 2.2
MOD 0.2 m
Back Focal Length 5.88
Angle of View (D) 170°
Megapixel (max.) 1 MP
IR Cut Filter Yes
Optical Distortion -88.1 %
Weight 7 g
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
