Lensagon BM12018V2

Megapixel S-Mount lens for 1/3 inch sensors, F1.8, f=12mm

 Compare
SKU: 10301 Category:

Product Description

The S-Mount lens Lensagon BM12018V2 is suitable for sensors below 1 megapixel with an image format of 1/3 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/3 inch
Focal Length 12 mm
Aperture (f#) 1.8
MOD 0.5 m
Back Focal Length 6.39
Angle of View (D) 28°
IR Correction Yes
IR Cut Filter No
Optical Distortion -1 %
Image Circle 6.2 mm
Iris fixed
Focus fixed
Chief ray angle 7 °
pdf

Additional Information

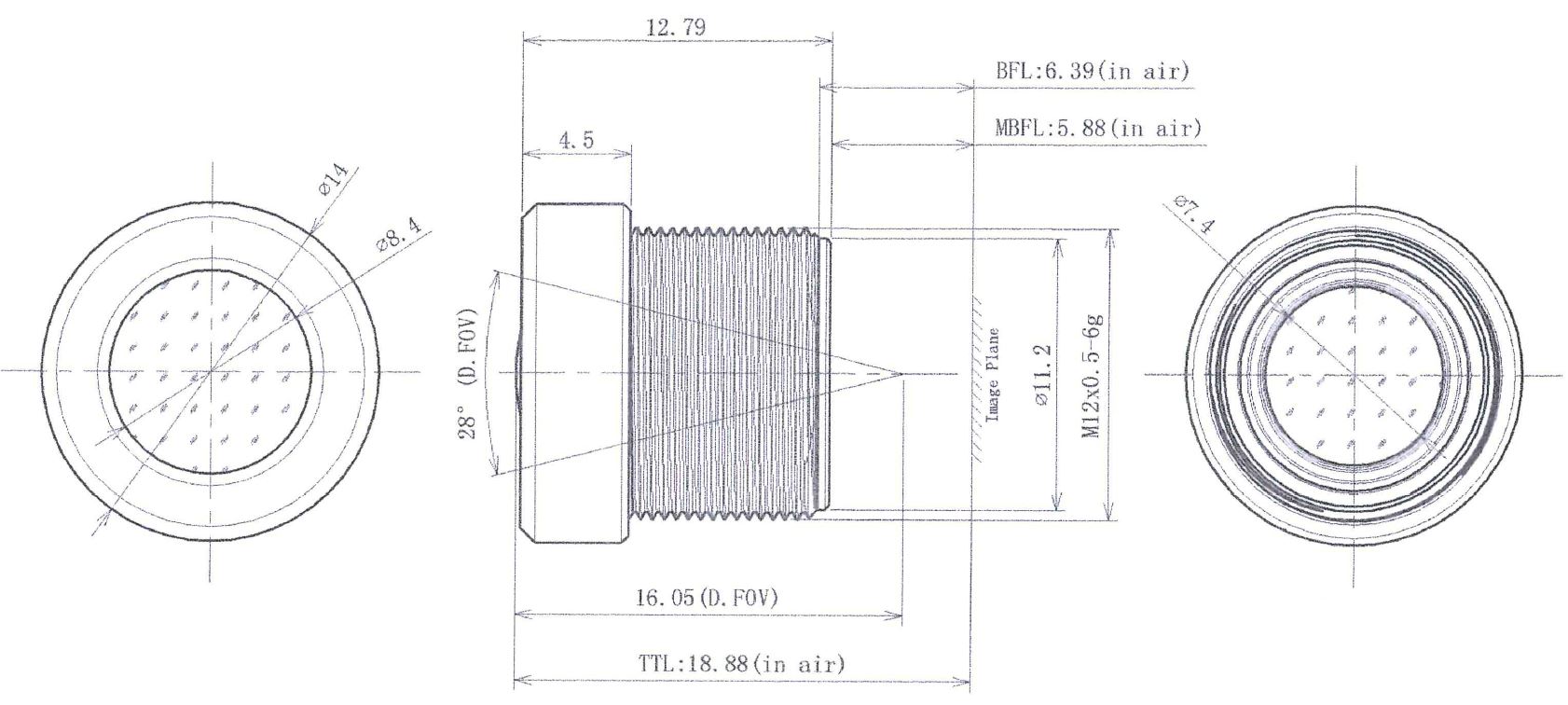

Drawing
