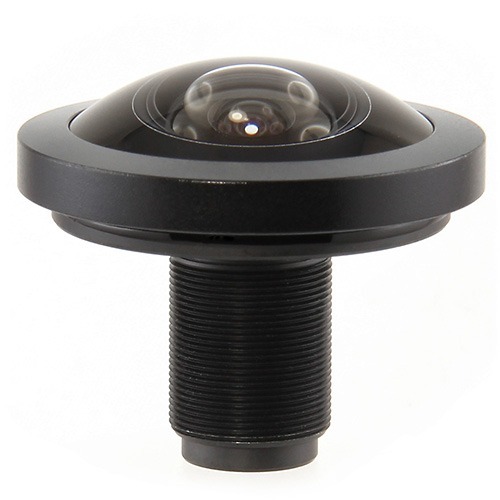

Lensagon BF9M1422C

Lensagon BF9M1422C

9 Megapixel Fisheye S-Mount lens for 1/2.3 inch sensors, F2.2, f=1.41mm

 Compare
SKU: 09970 Category:

Product Description

The S-Mount lens Lensagon BF9M1422C is suitable for current sensors up to 9 megapixel with an image format of 1/2.3 inch.

Mount S-Mount
Sensor 1/2.3 inch
Focal Length 1.41 mm
Aperture (f#) 2.2
MOD 0.1 m
Back Focal Length 3.69
Angle of View (D) 183°
Megapixel (max.) 9 MP
IR Cut Filter Yes
Optical Distortion -97 %
Image Circle 4.5 mm
Iris fixed
Focus fixed
Typ Fisheye
pdf

Additional Information

Technical Drawing:

Drawing
