Lensagon BF16M220DC

Lensagon BF16M220DC

16 Megapixel Fisheye S-Mount lens for 1/2.3 inch sensors, F2.5, f=1.2mm

 Compare
SKU: 00023 Category:

Product Description

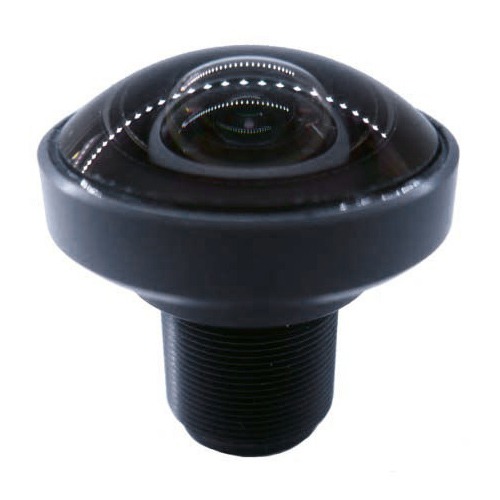

The S-Mount lens Lensagon BF16M220DC is suitable for current sensors up to 16 megapixel with an image format of 1/2.3 inch.

Mount S-Mount
Sensor 1/2.3 inch
Focal Length 1.2 mm
Aperture (f#) 2.5
Back Focal Length 2.95
Angle of View (D) 220°
Megapixel 16 MP
IR Cut Filter Yes
Image Circle 4.2 mm
Weight 26 g
Iris fixed
Focus fixed
Typ Fisheye
pdf

Additional Information

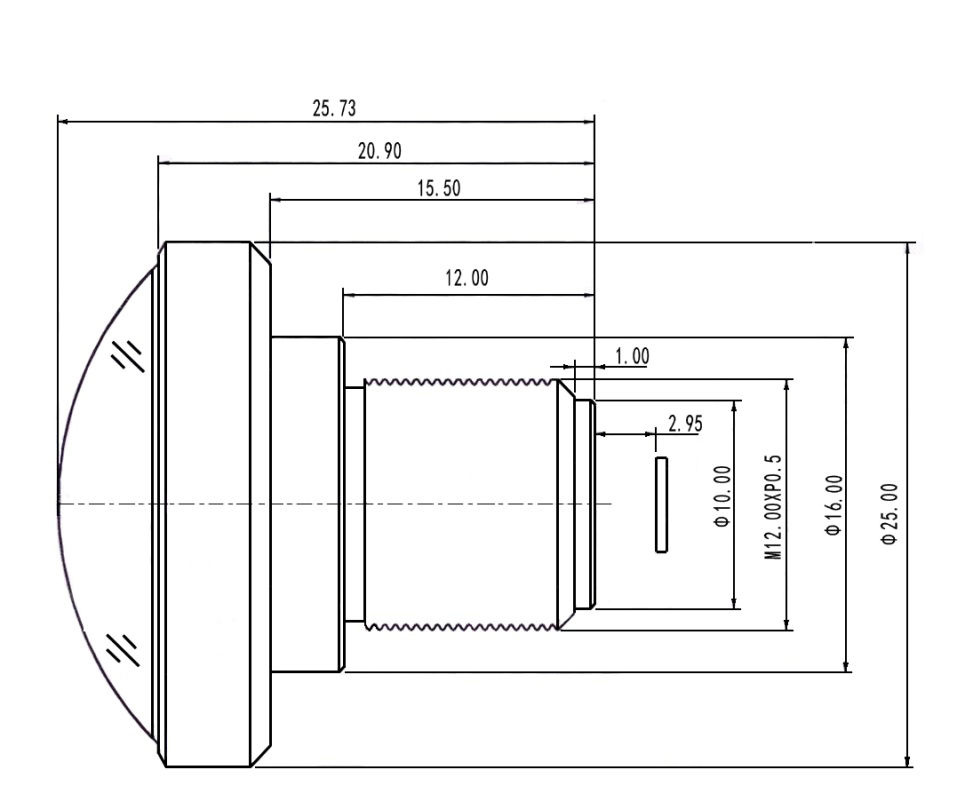

Technical Drawing:

Drawing
