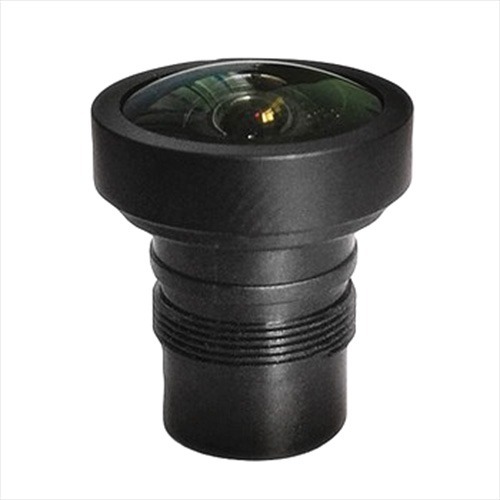

Lensagon BF10M2628S123C

10 Megapixel Fisheye S-Mount lens for 1/2.3 inch sensors, F2.8, f=2.6mm

 Compare
SKU: 11289 Category:

Product Description

The S-Mount lens Lensagon BF10M2628S123C is suitable for current sensors up to 10 megapixel with an image format of 1/2.3 inch.

Mount S-Mount
Sensor 1/2.3 inch
Focal Length 2.6 mm
Aperture (f#) 2.8
MOD 0.1 m
Back Focal Length 3.67
Angle of View (D) 150°
Megapixel (max.) 10 MP
IR Cut Filter Yes
Image Circle 8 mm
Iris fixed
Typ Fisheye
pdf

Additional Information

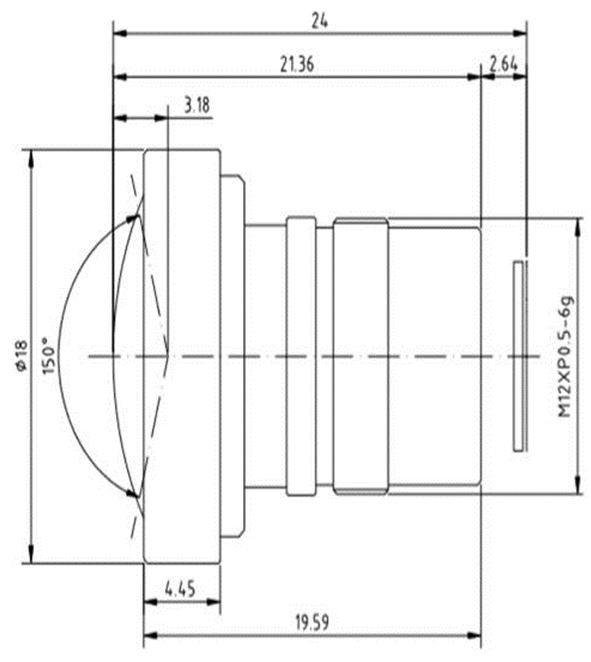

Drawing
