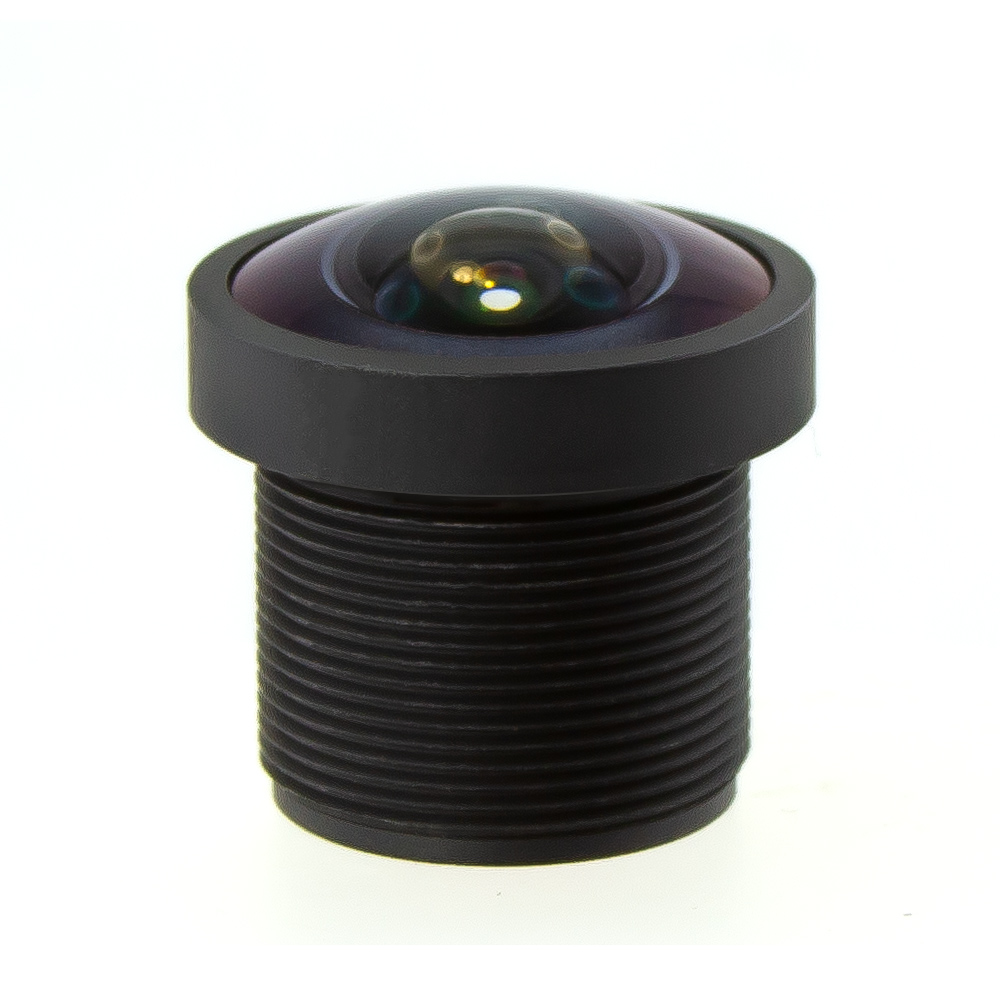

Lensagon B8M2026S132C

8 Megapixel S-Mount lens for 1/3.2 inch sensors, F2.65, f=2.01mm

 Compare
SKU: 11269 Category:

Product Description

The S-Mount lens Lensagon B8M2026S132C is suitable for current sensors up to 8 megapixel with an image format of 1/3.2 inch.

Mount S-Mount
Sensor 1/3.2 inch
Focal Length 2.01 mm
Aperture (f#) 2.65
MOD 0.1 m
Back Focal Length 3.57
Angle of View (D) 169°
Megapixel (max.) 8 MP
IR Correction Yes
IR Cut Filter Yes
Iris fixed
Focus fixed
Chief ray angle 16.5 °
Typ Standard
pdf

Additional Information

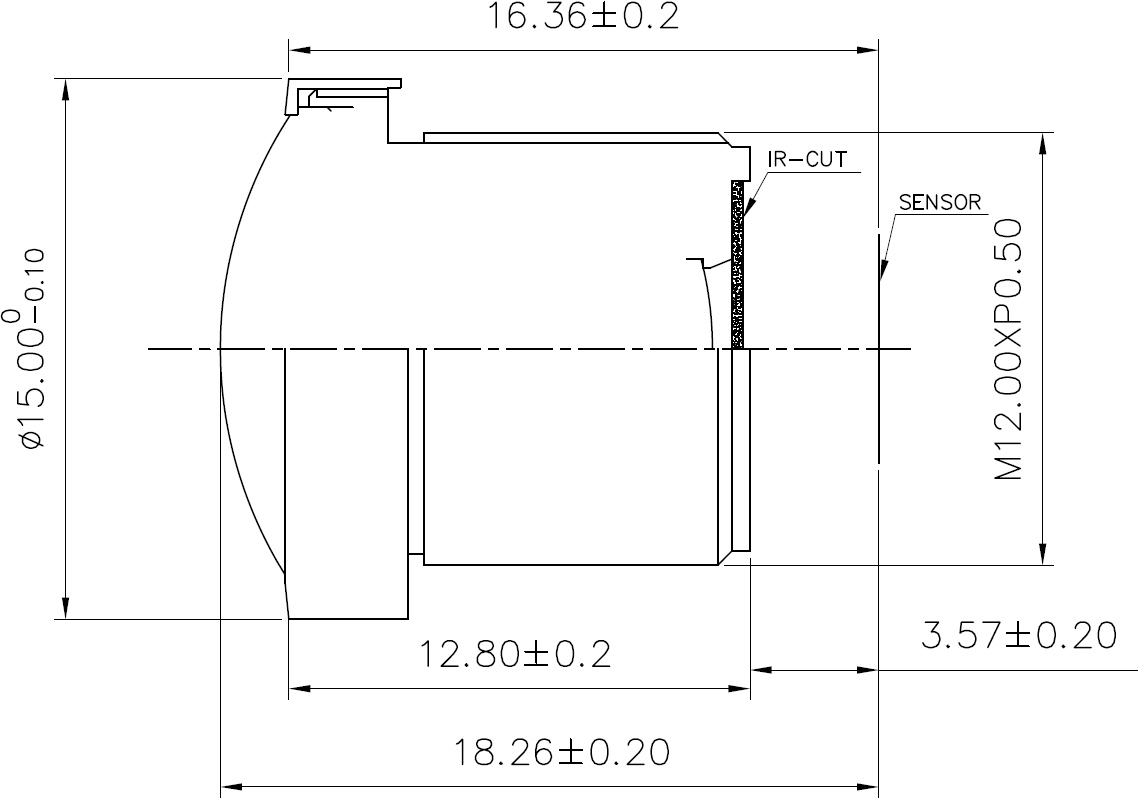

Drawing
