Product Description

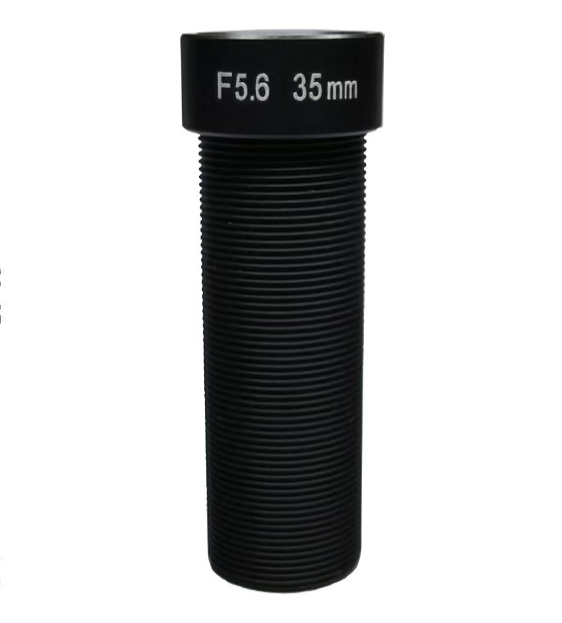

The S-Mount lens Lensagon B6M35056S23 is suitable for current sensors up to 6.00 megapixel with an image format of 2/3 inch.
| Mount | S-Mount |
| Sensor | 2/3 inch |
| Focal Length | 35.01 mm |
| Aperture (f#) | 5.60 |
| MOD | 0.10 m |
| Back Focal Length | 7.39 |
| Angle of View (D) | 16.40° / H: 12.60° / V: 10.60° |
| Megapixel (max.) | 6 MP |
| Optical Distortion | 0.20 % |
| Image Circle | 11.20 mm |
| Iris | fixed |
| Focus | fixed |
| Chief ray angle | 8.34 ° |
