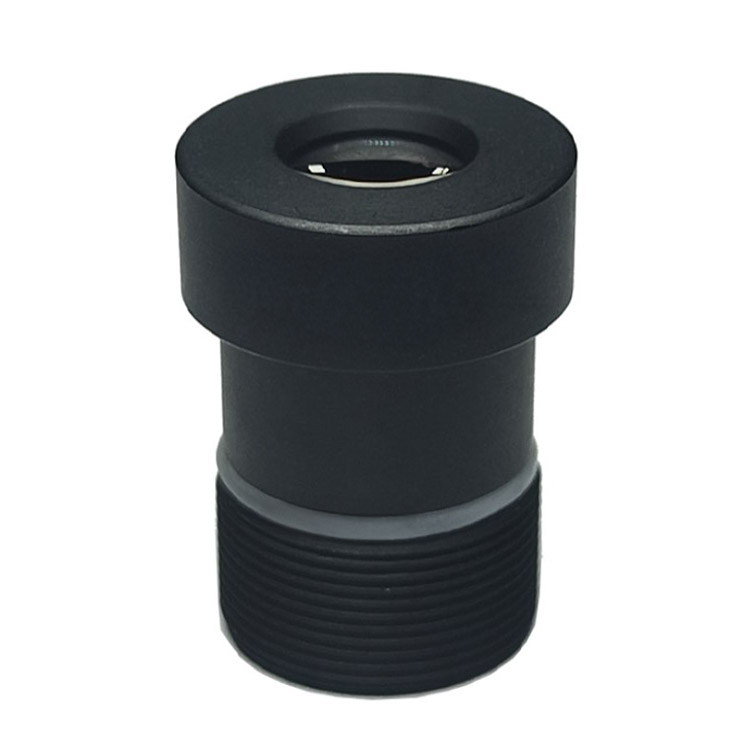

Lensagon B6M20080S23
6.0 Megapixel S-Mount lens for 2/3 inch sensors, F8.00, f=20.00mm, MOD 0.100m
Product Description
The S-Mount lens Lensagon B6M20080S23 is suitable for current sensors up to 6.0 megapixel with an image format of 2/3 inch.
| Mount | S-Mount |
| Sensor | 2/3 inch |
| Focal Length | 20 mm |
| Aperture (f#) | 8 |
| MOD | 0.100 m |
| Angle of View (D) | 29.20° / H: 22.60° / V: 18.90° |
| Megapixel (max.) | 6.0 MP |
| IR Cut Filter | No |
| Optical Distortion | 0.10 % |
| Image Circle | 11 mm |
| Iris | fixed |
| Focus | fixed |
| Chief ray angle | 16.07 ° |
