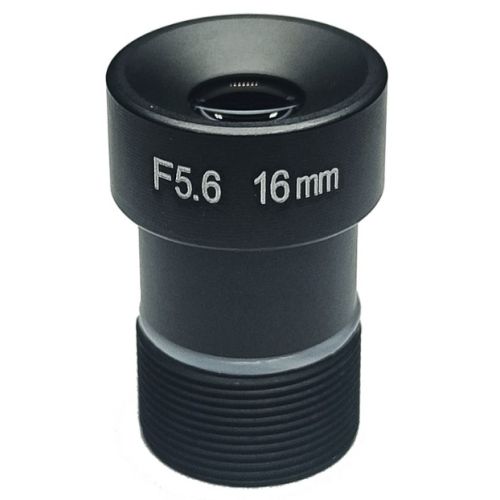

Lensagon B6M16056S118
6.0 Megapixel S-Mount lens for 1/1.8 inch sensors, F5.60, f=16.00mm, MOD 0.100m
Product Description
The S-Mount lens Lensagon B6M16056S118 is suitable for current sensors up to 6.0 megapixel with an image format of 1/1.8 inch.
| Mount | S-Mount |
| Sensor | 1/1.8 inch |
| Focal Length | 16 mm |
| Aperture (f#) | 5.60 |
| MOD | 0.100 m |
| Angle of View (D) | 30.30° / H: 24.50° / V: 18.50° |
| Megapixel (max.) | 6.0 MP |
| Optical Distortion | -0.17 % |
| Image Circle | 9 mm |
| Iris | fixed |
| Focus | fixed |
| Chief ray angle | 14.55 ° |
