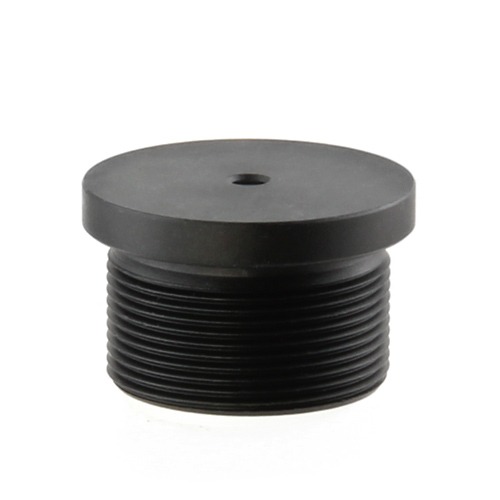

Lensagon B5M8556S12

Lensagon B5M8556S12

5 Megapixel S-Mount lens for 1/2 inch sensors, F5.6, f=8.5mm

 Compare
SKU: 10905 Category:

Product Description

The S-Mount lens Lensagon B5M8556S12 is suitable for common sensors up to 5 megapixel with an image format of 1/2 inch.

Mount S-Mount
Sensor 1/2 inch
Focal Length 8.5 mm
Aperture (f#) 5.6
MOD 0.1 m
Back Focal Length 5.85
Angle of View (D) 54.3°
Megapixel 5 MP
IR Cut Filter No
Image Circle 8.5 mm
Weight 5 g
Iris fixed
Focus fixed
Chief ray angle 8.6°
pdf

Additional Information

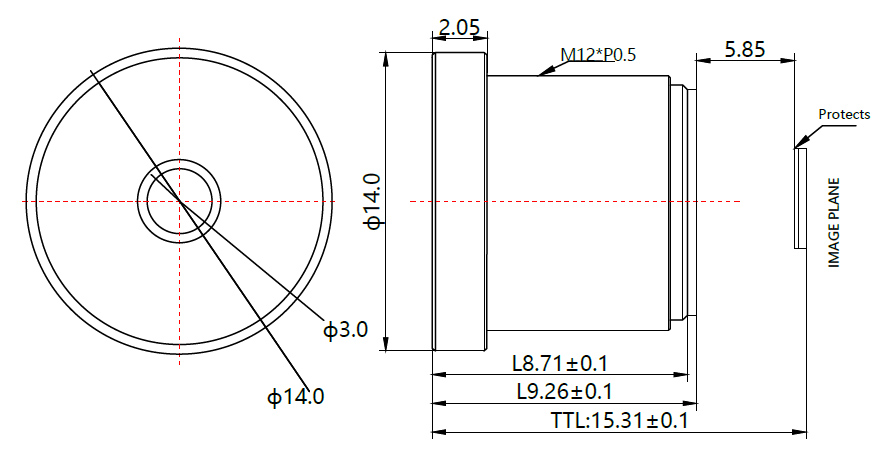

Technical Drawing:

Drawing
