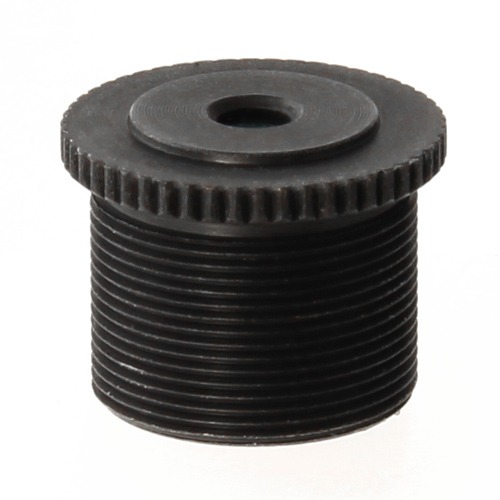

Lensagon B5M8430NC

Lensagon B5M8430NC

5 Megapixel S-Mount lens for 1/1.8 inch sensors, F3, f=8.42mm

 Compare
SKU: 00638 Category:

Product Description

The S-Mount lens Lensagon B5M8430NC is suitable for common sensors up to 5 megapixel with an image format of 1/1.8 inch.

Mount S-Mount
Sensor 1/1.8 inch
Focal Length 8.42 mm
Aperture (f#) 3
MOD 0.2 m
Back Focal Length 3.03
Angle of View (D) 60°
Megapixel 5 MP
IR Cut Filter Yes
Optical Distortion -1.15 %
Weight 8 g
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
