Product Description

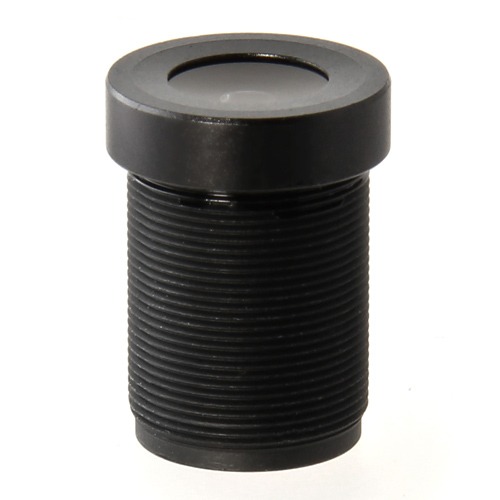

The S-Mount lens Lensagon B5M6018C is suitable for common sensors up to 5.00 megapixel with an image format of 1/2.5 inch. It is characterized by a particularly high light intensity.
| Mount | S-Mount |
| Sensor | 1/2.5 inch |
| Focal Length | 6 mm |
| Aperture (f#) | 1.80 |
| MOD | 0.15 m |
| Back Focal Length | 9.58 |
| Angle of View (D) | 75° / H: 57.50° / V: 41.40° |
| Megapixel (max.) | 5 MP |
| IR Correction | No |
| IR Cut Filter | Yes |
| Optical Distortion | -18 % |
| Image Circle | 8.10 mm |
| Weight | 5.80 g |
| Iris | fixed |
| Focus | fixed |
| Chief ray angle | 10.60 ° |
| Compatible with |
