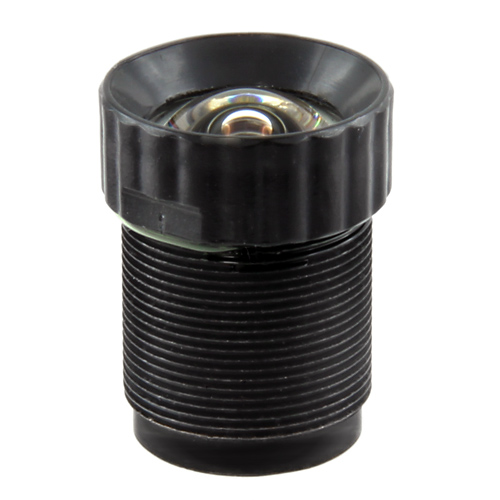

Lensagon B5M41430ND

5 Megapixel S-Mount lens for 1/2.5 inch sensors, F3, f=4.14mm

 Compare
SKU: 09934 Category:

Product Description

The S-Mount lens Lensagon B5M41430ND is suitable for common sensors up to 5 megapixel with an image format of 1/2.5 inch.

MountS-Mount
Sensor1/2.5 inch
Focal Length4.14 mm
Aperture (f#)3
MOD0.2 m
Back Focal Length5.25
Angle of View (D)81.1°
Megapixel5 MP
Optical Distortion0.2 %
Weight8.3 g
Irisfixed
Focusfixed
TypStandard
pdf

Additional Information

Technical Drawing:

Drawing
