Lensagon B5M3428S123

5 Megapixel S-Mount lens for 1/2.3 inch sensors, F2.8, f=3.4mm

 Compare
SKU: 10686 Category:

Product Description

The S-Mount lens Lensagon B5M3428S123 is suitable for common sensors up to 5 megapixel with an image format of 1/2.3 inch.

Mount S-Mount
Sensor 1/2.3 inch
Focal Length 3.4 mm
Aperture (f#) 2.8
Back Focal Length 6.3
Angle of View (D) 150°
Megapixel 5 MP
IR Cut Filter No
Optical Distortion -12 %
Image Circle 7.7 mm
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

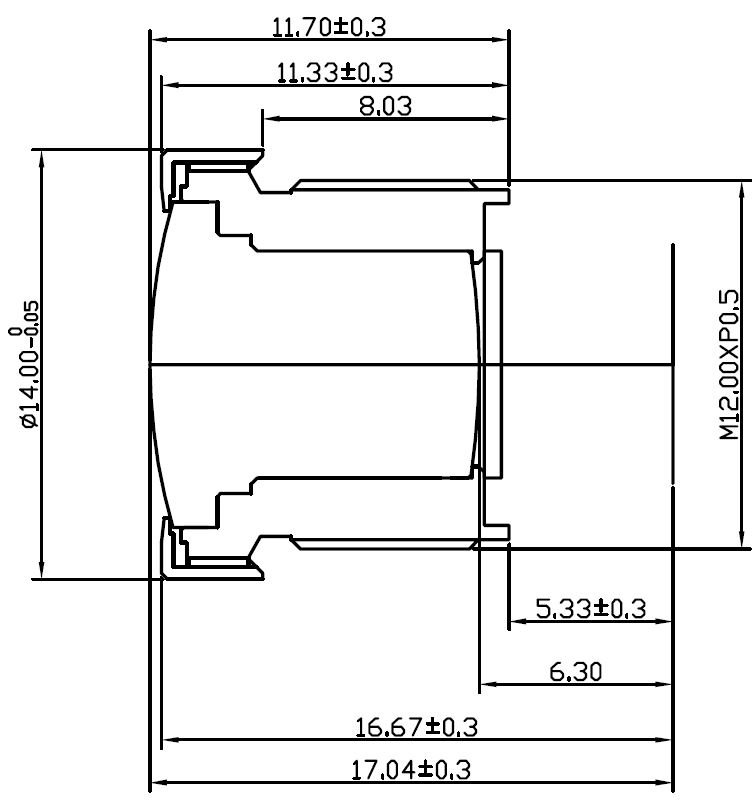

Technical Drawing:

Drawing
