Lensagon B3M6016C

Lensagon B3M6016C

3 Megapixel S-Mount lens for 1/2.5 inch sensors, F2.2, f=6mm

 Compare
SKU: 09967 Category:

Product Description

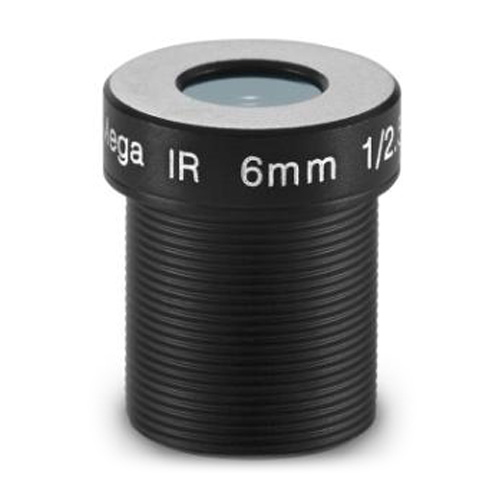

The S-Mount lens Lensagon B3M6016C is suitable for common sensors up to 3 megapixel with an image format of 1/2.5 inch.

Mount S-Mount
Sensor 1/2.5 inch
Focal Length 6 mm
Aperture (f#) 2.2
MOD 0.3 m
Back Focal Length 6.7
Angle of View (D) 72°
Megapixel 3 MP
IR Cut Filter Yes
Weight 5 g
Iris fixed
Focus fixed
pdf

Additional Information

Technical Drawing:

Drawing
