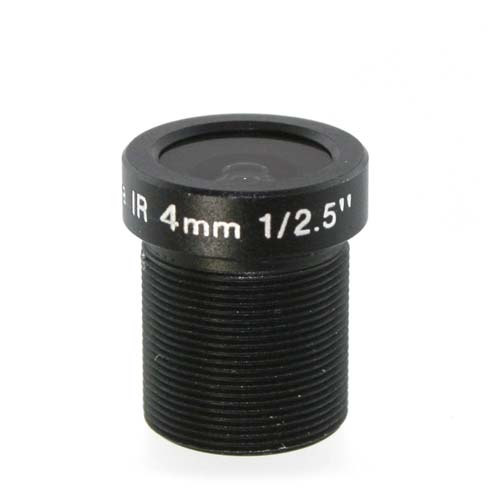

Lensagon B3M4016

Lensagon B3M4016

3 Megapixel S-Mount lens for 1/2.5 inch sensors, F2.2, f=4mm

 Compare
SKU: 09965 Category:

Product Description

The S-Mount lens Lensagon B3M4016 is suitable for common sensors up to 3 megapixel with an image format of 1/2.5 inch.

Mount S-Mount
Sensor 1/2.5 inch
Focal Length 4 mm
Aperture (f#) 2.2
MOD 0.3 m
Back Focal Length 7.1
Angle of View (D) 104°
Megapixel 3 MP
IR Correction Yes
IR Cut Filter corrected
Optical Distortion -32 %
Weight 5 g
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
