B3M12016C

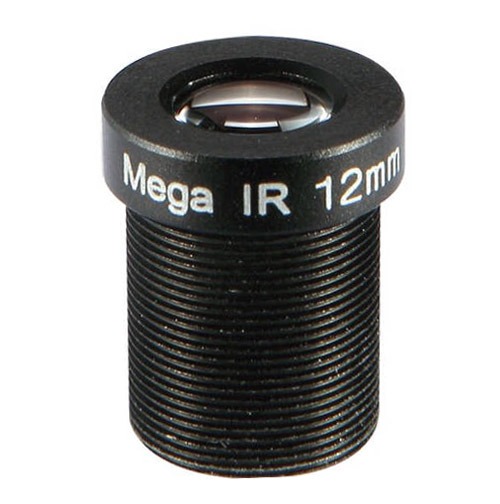

Lensagon B3M12016C

3 Megapixel S-Mount lens for 1/2.5 inch sensors, F2.3, f=12mm

 Compare
SKU: 10318 Category:

Product Description

The S-Mount lens Lensagon B3M12016C is suitable for common sensors up to 3 megapixel with an image format of 1/2.5 inch.

Mount S-Mount
Sensor 1/2.5 inch
Focal Length 12 mm
Aperture (f#) 2.3
MOD 0.3 m
Back Focal Length 7.1
Angle of View (D) 36°
Angle of View (H) 28°
Angle of View (V) 21°
Megapixel 3 MP
IR Cut Filter Yes
Weight 5 g
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

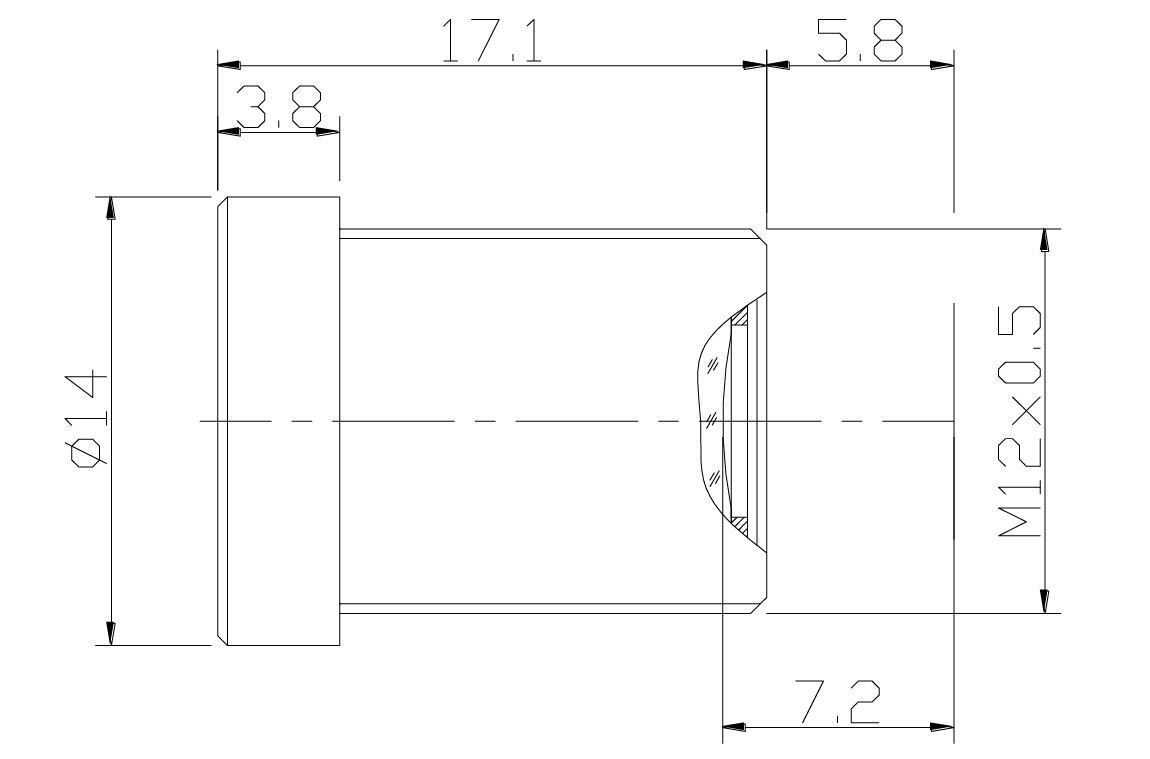

Technical Drawing:

Drawing
