B10M5022S12C

Lensagon B10M5022S12C

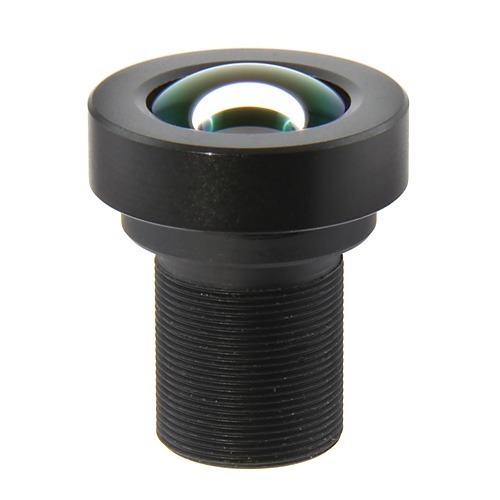

10 Megapixel S-Mount lens for 1/2 inch sensors, F2.2, f=5mm

 Compare
SKU: 10406 Category:

Product Description

The S-Mount lens Lensagon B10M5022S12C is suitable for current sensors up to 10 megapixel with an image format of 1/2 inch.

Mount S-Mount
Sensor 1/2 inch
Focal Length 5 mm
Aperture (f#) 2.2
MOD 0.3 m
Angle of View (H) 72°
Megapixel 10 MP
IR Cut Filter Yes
Optical Distortion -24 %
Weight 11 g
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
